8100 Product Series

The 8100 product series are fully modular time reference systems that support the Global Navigation Satellite Systems (GNSS) GPS, Galileo, GLONASS, BeiDou and IRNSS/NavIC, as well as NTP, PTP and various other time sources for precise and reliable time synchronization at extremely competitive prices and are particularly well suited for critical infrastructure applications.

Key Features Description Technical Data Standards Products Download
  • 1U fully modular subrack for 19-inch rack mounting
  • LCD information display and LEDs for system status
  • Redundant power supply option with load-balancing for increased life time
  • Redundant time domain support for system partitioning or high-availability time source configurations
  • All components are hot-plug capable field-replaceable units (FRU)
  • Extended temperature range for reliable operation between –40° and +70°C
  • GPS, Galileo, GLONASS, BeiDou, NavIC time sources for reliable satellite synchronization
  • Average accuracy of ±30 ns to UTC, peak accuracy of ±100 ns to UTC for demodulated IRIG-B and pulse outputs and ±1 μs for modulated IRIG-B output
  • Synchronization of IEC 61850 compatible devices with support for highest performance class T5
  • Typical NTP time stamp accuracy <30 μs
  • Precision Time Protocol (PTP) option with peak time stamp accuracy ±100 ns, support for IEC 61850-9-3:2016 Power Utility Automation Profile, IEEE C37.238-2017 Power Profile
  • IEC 62439-3:2021 Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR) option, feature combinable with PTP

  • Built-in by default GNSS firewall with multi-layered anti-jamming and anti-spoofing technologies and interference mitigation
  • Redundant time domains, multi redundant time sources and time source prioritization safeguard precise and resilient timing signal synchronization even at most demanding availability requirements

  • huma® web edition, HTTPS web interface - Learn more
  • Integrated event log
  • Diagnostics and monitoring via SNMP v2c and v3 read operations (MIB II, hopf private enterprise MIB, NTPv4 MIB, PTPBASE MIB, IEEEC37.238 MIB, IEC-62439-3 MIB)
  • Event notification using SNMP traps, email messaging and/or external SYSLOG server

  • Separation of diagnostic and operational / productivity networks for guaranteed cyber security
  • Role based access control (RBAC) with support of LDAP and RADIUS authentication according to IEC 62351-8:2020
  • Built-in by default network firewall for provision of barrier against network-based intrusion attempts
  • Certificate signed configuration files and firmware packages
The 8100 product series time reference systems have been designed for mission critical applications with high requirements in terms of flexibility, availability, security and the support of a wide variety of time synchronization standards commonly used in public infrastructure, railway technology, air traffic control, power utility, digital smart grid, industry automation and data center facilities.
The modular system design facilitates easy spare part management and minimum mean time to repair (MTTR) due to all components support hot-plug capability. The modularity of the system also ensures security of investment if the requirements for the system should increase or change in the future.

The system supports both single and dual / redundant power supplies (PSU) to ensure higher availability. Power supplies are available for DC input voltages 24VDC (18 – 36VDC), 48VDC (36 – 76VDC), 110VDC (60 – 160VDC), wide range DC input voltages 19 – 75VDC and wide range AC/DC input voltages 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC. The DC voltage power supplies feature redundant power inputs for connection of two power sources to a single power supply. In the version with redundant power supplies, the available power supplies can be combined as required.
Up to six extension slots are available for time domain controller boards (time signal input from time source), service provider boards (time signal output / distribution to customer application), and management controller boards.
A variety of time service provider consumer boards is available for, among others:
  • Network time synchronization using Network Time Protocol (NTP / SNTP), SIMATIC NET SINEC H1 Time Datagram or IEEE 1588™-2019 Precision Time Protocol (PTP) with support for IEC 61850-9-3:2016 profile for power utility automation and IEEE Std C37.238™-2017 power profile
  • IRIG-B and DCF77 signal output (demodulated / modulated)
  • Programmable cyclic pulse (PPS, PPM, PPH)
  • Serial time datagram (e. g.hopf Standard, IEC-103, ABB Melody / Freelance, Trimble TSIP, SAT1703 / SICAM RTU)
  • Signal distribution via electrical or fiber-optic signal output.
The 8100 product series time domain controllers facilitate evaluation of time signals from multiple time sources like GNSS satellite systems, NTP/PTP network time signals as well as various other time sources. On receiver and firmware level the time domain controllers implement consistency checks and statistical tests on features such as automatic gain control (AGC), clock error, signal quality, signal power, propagation delay and the angle of arrival in order to safeguard error-free and leap-free time signal evaluation. In case of signal loss due to antenna failure or identification of time signal mismatch due to jamming or spoofing attacks the time domain controller clock automatically switches to available redundant time sources or the integrated oscillator circuit holdover ensuring the oscillator dependent freewheeling accuracy. For unprecedented availability redundant time domain controller and multi redundant time source configurations with prioritizable fall back time sources are supported as well as the hopf Secure Timing Platform (hSTP).

Time domain controller boards with integrated management controller as well as management controller boards allow easy configuration and monitoring using the hopf unified management application huma® web edition which features secure access to the system via an intuitive to use state-of-the-art web interface. All field replaceable units integrated into the enclosure can be centrally configured. System configurations may be saved for the whole enclosure or for each individual board separately.
The management controller continuously monitors the health status of all integrated boards and components. It collects diagnostic and statistical data for the integrated event log and for real time notification of critical events to external IT management systems using email messaging, SNMP traps or external SYSLOG server.

The current demand for the convergence of Information Technologies (IT) and Operational Technologies (OT) in critical infrastructure requires to ensure cyber security and reliability in compliance with regulatory requirements. The modular system design of the 8100 product series allows complete separation of networks (e.g. process bus for power utility applications) for guaranteed cyber security while allowing complete access to diagnostic data and critical events for IT network management via integrated or standalone management controller. Role based access control according to the most up-to-date standards safeguards secure access to the management controller by authorized staff. The built-in by default network firewall feature adds even increased security against network-based intrusion attempts by limiting access to the minimum necessary network connections and services. All configuration files and firmware update packages may be signed by certificate to ensure authenticity and eligibility for application. The system fulfills security level 2 according to IEC 62443-4-2:2019

Housing19 inch 1U subrack according to IEC 60297-3-100
Dimensions
  • Width: 482.6 mm (19.00 inch) / 445.5 mm (17.54 inch)
  • Height: 44.00 mm (1.73 inch)
  • Depth: 236.5 mm (9.31 inch) / 243.5 mm (9.59 inch)
MaterialPowder-coated metal
Color (RAL)Light gray (7035)
Protection classIP30 according to IEC 60529
Weight3.5 kg (7.7 lbs) without power supply units and extension boards
Scheme

Operating Temperature-40°C to +70°C (-40°F to +158°F) according to IEC 61850-3 and IEEE 1613
Storage Temperature-40°C to +70°C (-40°F to +158°F) according to IEC 61850-3 and IEEE 1613
Operating Altitude Up to 5,000 m (16,404 ft) above sea level in accordance with IEC 61850-3
Relative Humidity5 to 95% (non-condensing) at 40°C (104°F) according to IEC 61850-3
Operating EnvironmentPollution degree: 2 overvoltage class: II
Reliability (MTBF)1.850.000h (without display and fan)

TemperatureIEC 60068-2-1    Severity Level 16h at -40°C
IEC 60068-2-2    Severity Level 16h at +85°C storage

                  Severity Level 16h at +65°C operating

IEC 60068-2-14   Severity Level -20° to +55°C, 5 cycles
IEC 60068-2-30   Severity Level +25° to +55°C, 6 cycles, RH 95%
IEC 60068-2-78   Severity Level 240h at +40°C, RH 95%
Mechanical StressIEC 60255-21-1   Severity Level Class 2
IEC 60255-21-2   Severity Level Class 2
IEC 60255-21-3   Severity Level Class 2
Electromagnetic CompatibilityEN 55032            Class B

(CISPR 32)

IEC 61000-4-2    Severity Level 4   8kV contact / 15kV air

IEC 61000-4-3    Severity Level 3   10V/m

IEC 61000-4-4    Severity Level 4   4kV power connector

         4kV signal connector

IEC 61000-4-5    Severity Level 4   2kV line-to-line

4kV line-to-earth

IEC 61000-4-6    Severity Level 3   10V

IEC 61000-4-11  Severity Level X   30% one period

60% 50 periods

100% 5 periods

100% 50 periods

IEC 61000-4-12  Severity Level 3   1kV line-to-line

2,5kV line-to-earth

IEC 61000-4-17  Severity Level 3   10%

IEC 61000-4-18  Severity Level 3   1kV line-to-line

2,5kV line-to-earth

IEC 61000-4-29  Severity Level X   30% 0,1sec

60% 0,1sec

100% 0,05sec


FG8901P01
Input Voltage:85-264VAC 125-250VDC
Input Frequency:47-63Hz for AC input voltage
Input Current:max. 1,3A@100VAC max. 0,7A@200VAC

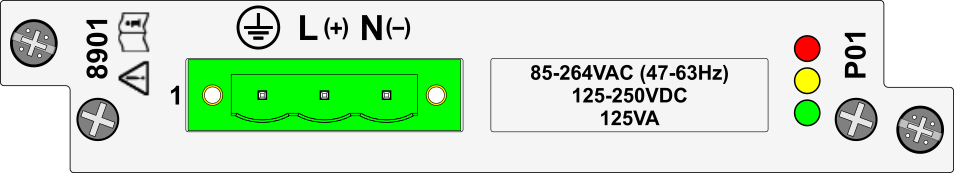

Reliability (MTBF):250.000h
FG8901P02
Input Voltage:18-36VDC
Input Current:max. 5,47A@24VDC
Reliability (MTBF):300.000h

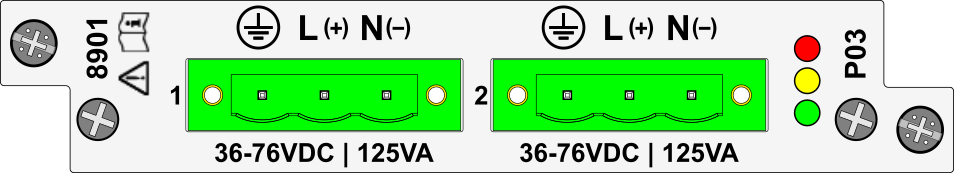

FG8901P03
Input Voltage:36-76VDC
Input Current:max. 2,69A@48VDC
Reliability (MTBF):300.000h
FG8901P04
Input Voltage:60-160VDC
Input Current:max. 1,1A@110VDC
Reliability (MTBF):300.000h

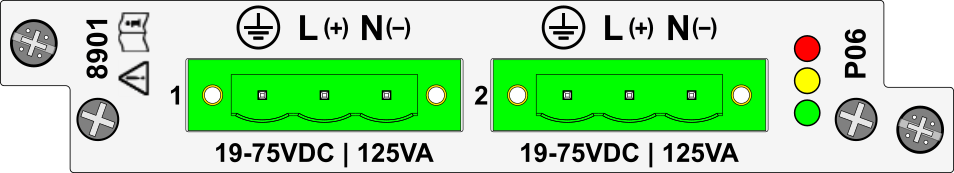

FG8901P06
Input Voltage:19-75VDC
Input Current:max. 5,7A@24VDC
Reliability (MTBF):300.000h
FG8702G01
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Operating Voltage+/-250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤ 40 seconds depending on the configuration
Antenna
Supply Voltage5V±10%
Currentmax. 100mA
Receiver
Receiver typeStandard precision single band L1
GNSS systemsGPS, GLONASS, Beidou, Galileo
Channels92
Time to first fix
  • Warm start: <2s
  • Cold start: <29s
Sensitivity
  • Tracking: -166dBm
  • Warm start: -159dBm
  • Cold start: -148dBm
Accuracy
  • RMS: 30ns
Clock Accuracy
Internal PPS±15ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant temperature after 2 days of continuous operation
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
Reliability
MTBF1.100.000h
FG8702G02Identical to FG8702G01 except holdover
Clock Accuracy
Holdover23,9µs per day after 7 days of continuous operation (±1°C)
FG8702G03Identical to FG8702G01 except holdover
Clock Accuracy
Holdover4,32µs per day after 7 days of continuous operation (±1°C)
FG8702G04Identical to FG8702G01 but with additional redundant receiver:
2nd Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fix
  • Warm start: <2s
  • Cold start: <29s
Sensitivity
  • Tracking: -167dBm
  • Warm start: -159dBm
  • Cold start: -148dBm
Accuracy
  • 1-sigma 10ns
  • 1-sigma jitter removed 5ns
FG8702G05Identical to FG8702G02 but with additional redundant receiver:
2nd Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fix
  • Warm start: <2s
  • Cold start: <29s
Sensitivity
  • Tracking: -167dBm
  • Warm start: -159dBm
  • Cold start: -148dBm
Accuracy
  • 1-sigma 10ns
  • 1-sigma jitter removed 5ns
FG8702G06Identical to FG8702G03 but with additional redundant receiver:
2nd Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fix
  • Warm start: <2s
  • Cold start: <29s
Sensitivity
  • Tracking: -167dBm
  • Warm start: -159dBm
  • Cold start: -148dBm
Accuracy
  • 1-sigma 10ns
  • 1-sigma jitter removed 5ns
FG8702G11
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Operating Voltage±250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤40 seconds depending on the configuration
Antenna
Supply Voltage5V±10%
Current max.100mA
Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fix
  • Warm start: <2s
  • Cold start: <29s
Sensitivity
  • Tracking: -167dBm
  • Warm start: -159dBm
  • Cold start: -148dBm
Accuracy
  • 1-sigma 10ns
  • 1-sigma jitter removed 5ns
Clock Accuracy
Internal PPS±10ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant temperature after 2 days of continuous operation
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
Reliability
MTBF1.100.000h
FG8702G12Identical to FG8702G11 except holdover
Clock Accuracy
Holdover23,9µs per day after 7 days of continuous operation (±1°C)
FG8702G13Identical to FG8702G11 except holdover
Clock Accuracy
Holdover4,32µs per day after 7 days of continuous operation (±1°C)
FG8801N02
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
Reliability
MTBF1.250.000h
FG8801F02
Ethernet
Ports2
Data Ratedependent on SFP transceiver module
ConnectorLC
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
Reliability
MTBF1.250.000h
FG8800M00
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Data Rate+/-250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
Reliability
MTBF1.250.000h
IEC 61000-3-2:2018 + A1:2020 + ISH1:2021Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-3:2013 + A1:2017 + A2:2021 + A2:2021/COR1:2022Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
IEC 61000-4-2:2008 Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement techniques – Electrostatic discharge immunity test
EC 61000-4-3:2020 Electromagnetic compatibility (EMC) – Part 4-3: Testing and measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4:2012Electromagnetic compatibility (EMC) – Part 4-4: Testing and measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2014/A1:2017Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test
IEC 61000-4-6:2013Electromagnetic compatibility (EMC) – Part 4-6: Testing and measurement techniques – Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-11:2020 + COR1:2020Electromagnetic compatibility (EMC) – Part 4-11: Testing and measurement techniques – Voltage dips, short interruptions and voltage variations immunity tests
IEC 61000-4-12:2017Electromagnetic compatibility (EMC) – Part 4-12: Testing and measurement techniques – Ring wave immunity test
IEC 61000-4-17:1999 + A1:2001Electromagnetic compatibility (EMC) - Part 4-17: Testing and measurement techniques - Ripple on d.c. input power port immunity test
IEC 61000-4-18:2019 + COR1:2019Electromagnetic compatibility (EMC) - Part 4-18: Testing and measurement techniques - Damped oscillatory wave immunity test
IEC 61000-4-29:2000Electromagnetic compatibility (EMC) - Part 4-29: Testing and measurement techniques; Voltage dips, short interruptions and voltage variations on d.c. input power port immunity tests
IEC 61000-6-2:2016Electromagnetic compatibility (EMC). Part 6-2: Generic standards – Immunity for industrial environments
IEC 61000-6-3:2020Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emission standard for residential, commercial and light-industrial environments
IEC 61000-6-4:2018Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
IEC 61000-6-5:2015/COR1:2017Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
EN 50121-4:2016Railway applications - Electromagnetic compatibility - Part 4: Emission and immunity of the signalling and telecommunications apparatus
EN 55016-2-1:2014 /A1:2017 (CISPR 16-2-1:2014 +A1:2017)Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-1: Methods of measurement of disturbances and immunity - Conducted disturbance measurements
EN 55016-2-3:2017 /A1:2019 (CISPR 16-2-3:2016 +A1:2019)Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-3: Methods of measurement of disturbances and immunity - Radiated disturbance measurements
EN 55032:2015/AC:2016/ A11:2020/A1:2020 (CISPR 32:2015 + COR1:2016 + A1:2019)Electromagnetic compatibility of multimedia equipment – Emission Requirements (150kHz – 30 MHz)
EN 55035:2017 (CISPR 35:2016, modified)Electromagnetic compatibility of multimedia equipment – Immunity requirements

EN IEC 62368-1:2024 + A11:2024Audio/video, information and communication technology equipment – Part 1: Safety requirements
IEC 60529:1989/A1:1999 /A2:2013Degrees of protection provided by enclosures (IP Code)

IEC 62443-4-2:2019Security for industrial automation and control systems - Part 4-2: Technical security requirements for IACS components
ISO/IEC 27002:2022-02Information security, cybersecurity and privacy protection - Information security controls

EN 301 489-1 V2.2.3 (2019-11)ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 1: Common technical requirements - Harmonised Standard for ElectroMagnetic Compatibility
EN 301 489-19 V2.2.1 (2022-09)ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band providing data communications and GNSS receivers operating in the RNSS band (ROGNSS) providing positioning, navigation and timing data - Harmonised Standard for ElectroMagnetic Compatibility
EN 303 413 V1.2.1 (2021-04)Satellite Earth Stations and Systems (SES) - Global Navigation Satellite System (GNSS) receivers - Radio equipment operating in the 1164 MHz to 1300 MHz and 1559 MHz to 1610 MHz frequency bands - Harmonised Standard for access to radio spectrum

IEC 60068-2-1:2007Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2:2007Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-30:2005Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic (12 h + 12 h cycle)
IEC 60255-21-1:1988Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 1: Vibration tests (sinusoidal)
IEC 60255-21-2:1988Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 2: Shock and bump tests
IEC 60255-21-3:1993Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 3: Seismic tests
IEC 60721-2-3:2013Classification of environmental conditions - Part 2-3: Environmental conditions appearing in nature - Air pressure
IEC 61850-3:2013Communication networks and systems for power utility automation - Part 3: General requirements
IEC 63000:2016Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
IEEE 1613-2009Environmental and testing requirements for communications networking devices installed in electric power substations

IEC 60297-3-100:2008Mechanical structures for electronic equipment - Dimensions of mechanical structures of the 482,6 mm (19 in) series - Part 3-100: Basic dimensions of front panels, subracks, chassis, racks and cabinets

IEC 61850-5:2013Communication networks and systems for power utility automation - Part 5: Communication requirements for functions and device models


General Standards & Protocols

  • IEEE 802.1Q VLANs
  • IEEE 802.3 Type 10BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEC 62439-3:2021 Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR)
  • RFC 768 User Datagram Protocol (UDP)
  • RFC 791 Internet Protocol, Version 4 (IPv4)
  • RFC 792 Internet Control Message Protocol (ICMPv4)
  • RFC 793 Transmission Control Protocol (TCP)
  • RFC 826 Address Resolution Protocol (ARP)
  • RFC 1035 Domain Names (client)
  • RFC 1918 Address Allocation for Private Internet
  • RFC 4443 Internet Control Message Protocol (ICMPv6)
  • RFC 2131 Dynamic Host Configuration Protocol (DHCPv4)
  • RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6)
  • RFC 3596 DNS Extensions to Support IP Version 6
  • RFC 8200 Internet Protocol, Version 6 (IPv6)
  • RFC 8415 Dynamic Host Configuration Protocol for IPv6 (DHCPv6)


Device & Network Management

  • RFC 1098 A Simple Network Management Protocol (SNMP)
  • RFC 1155 Structure and Identification of Management Information for TCP/IP-based Internets
  • RFC 1213 Management Information Base for Network Management of TCP/IP-based internets: MIB-II
  • RFC 2578 Structure of Management Information Version 2 (SMIv2)
  • RFC 2579 Textual Conventions for SMIv2
  • RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks
  • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
  • RFC 3413 Simple Network Management Protocol (SNMP) Applications
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
  • RFC 4250/4251/5252/4253/4254 The Secure Shell (SSH) Protocol
  • RFC 5321 Simple Mail Transfer Protocol
  • RFC 5424 The Syslog Protocol
  • RFC 7540 Hypertext Transfer Protocol Version 2 (HTTP/2)
  • hopf  Private Enterprise MIB


Security / Authentication

  • IEC 62351-8:2020 Power systems management and associated information exchange - Data and communications security - Role-based access control
  • IEC 62443-4-2:2019 Security for industrial automation and control systems - Technical security requirements for IACS components
  • IEEE 1686-2013 Standard for Intelligent Electronic Devices Cyber Security Capabilities
  • IEEE 802.1AE Media Access Control (MAC) Security (MACsec)
  • RFC 4510/4511/4512/4513/4514/4515/4516/ 4517/4518/4519/4520 Lightweight Directory Access Protocol (LDAP)
  • RFC 2865 Remote Authentication Dial In User Service (RADIUS)
  • RFC 2866 RADIUS Accounting
  • RFC 7384 Security Requirements of Time Protocols in Packet Switched Networks
  • RFC 8915 Network Time Security for the Network Time Protoco


Time Synchronization

  • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
  • RFC 5906 Network Time Protocol Version 4: Autokey Specification
  • RFC 5907 Definitions of Managed Objects for Network Time Protocol Version 4 (NTPv4)
  • IEEE 1588-2019 Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems (PTP v2.1)
  • IEEE C37.238-2017 Standard Profile for Use of IEEE 1588 Precision Time Protocol in Power System Applications
  • IEC 61588:2021 Precision clock synchronization protocol for networked measurement and control systems
  • IEC 61850-9-3:2016 Communication networks and systems for power utility automation - Precision time protocol profile for power utility automation
  • IEEE 60255-118-1:2018-12 Measuring relays and protection equipment - Synchrophasor for power systems – Measurements
  • ITU-T G.8275.1 / G.8275.2 Precision Time Protocol telecom profile for phase/time synchronization
  • SIMATIC NET SINEC H1 Time Datagram

Base System

FG8101G01

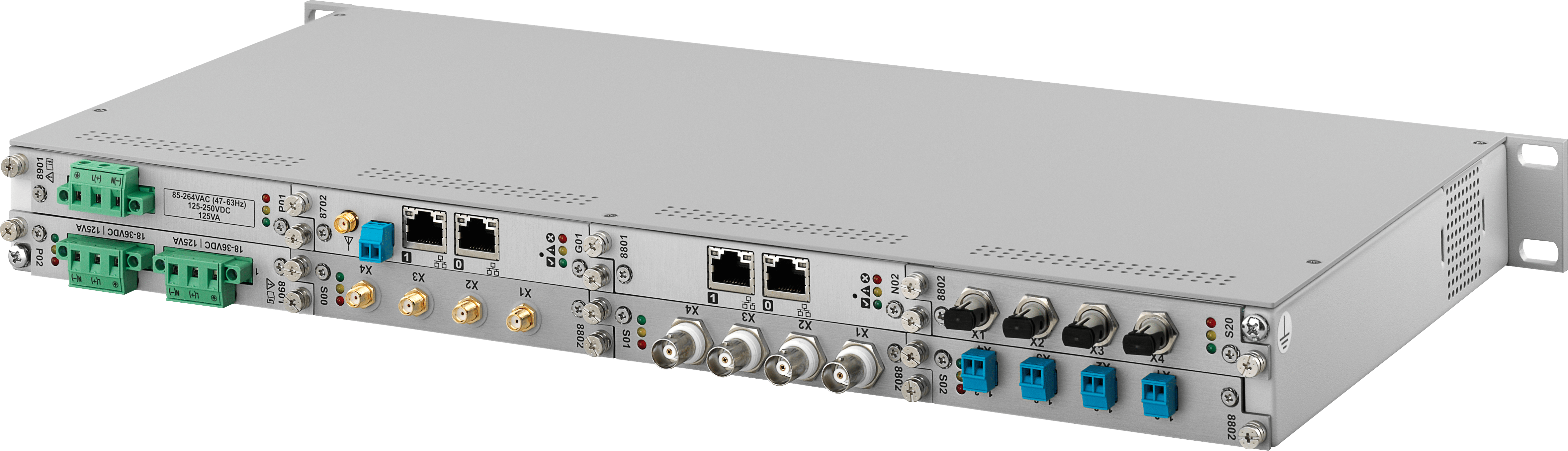

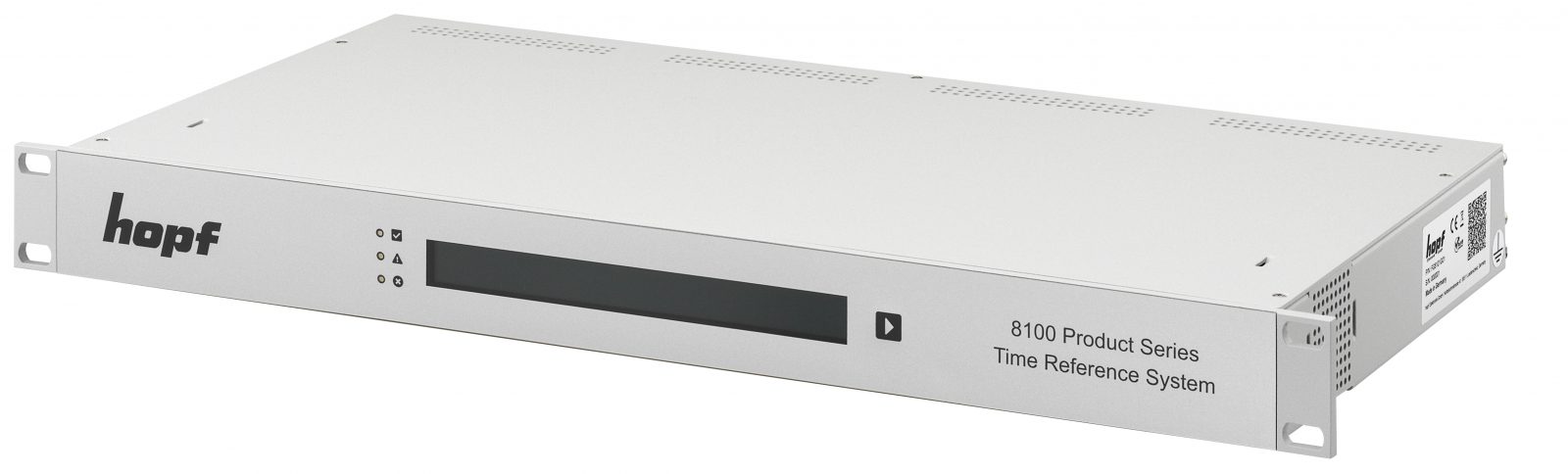

FG8101G01-B000		8100 product series time reference system
  • 19-inch 1U modular subrack according to IEC 60297-3-100:2008
  • 2 extension slots for redundant power supply units
  • 6 extension slots for time domain controller, service provider, and management controller boards

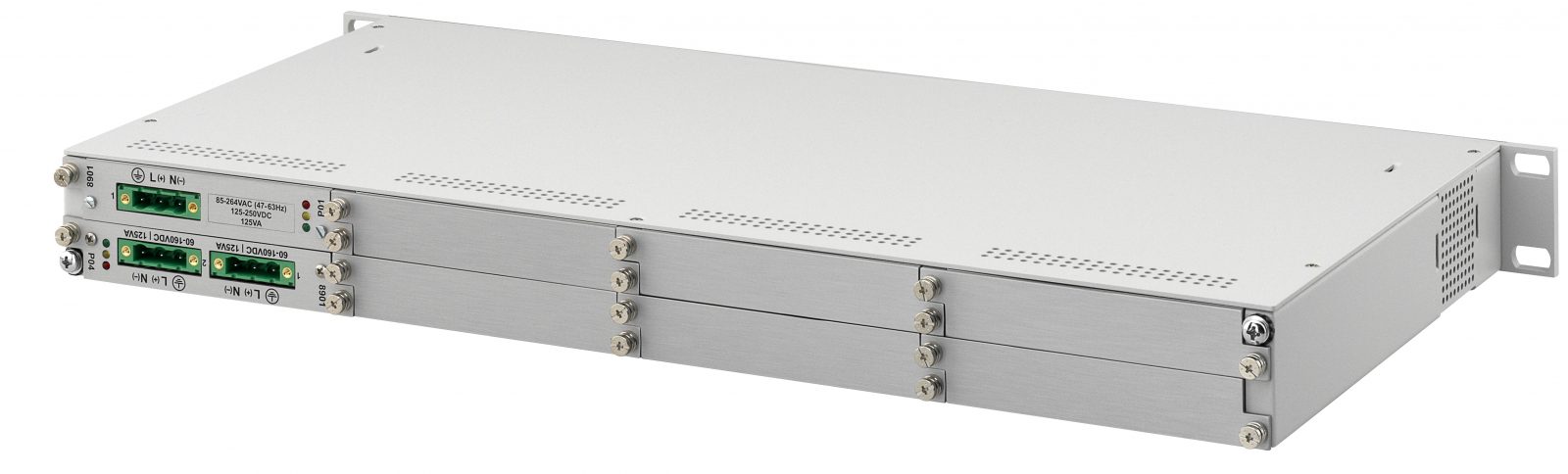

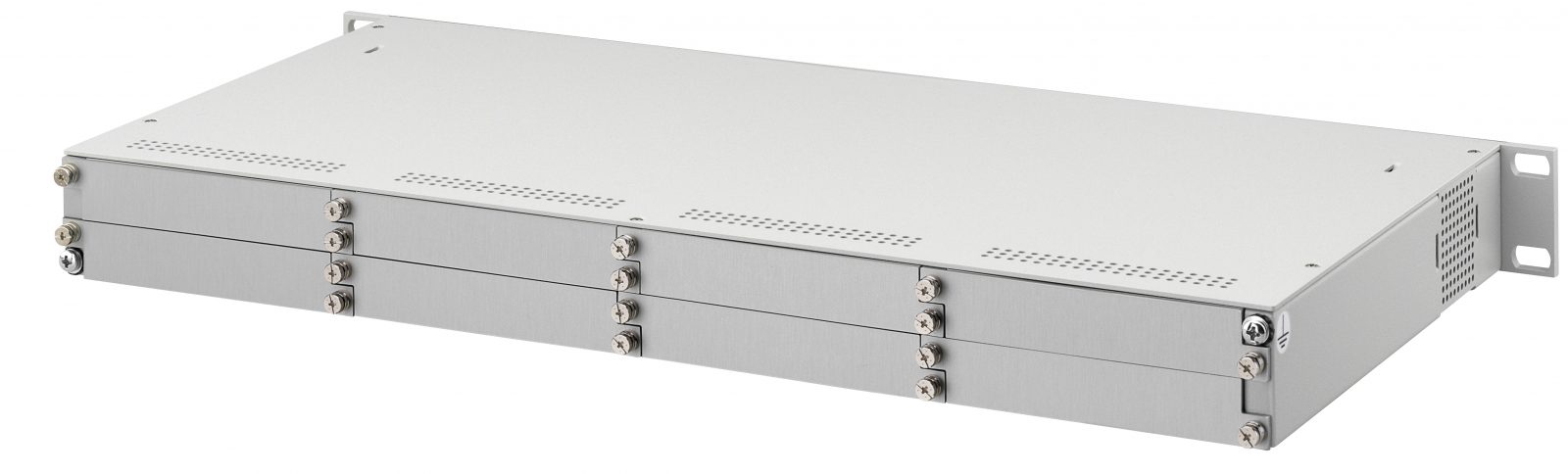

FG8101G02
FG8101G02-B000		8100 product series time reference system
  • 19-inch 1U modular subrack according to IEC 60297-3-100:2008
  • 2 extension slots for redundant power supply units
  • 6 extension slots for time domain controller, service provider and management controller boards
  • Preparation of slot 2 and slot 6 for usage with time domain controller boards FG8701Gxx

Base System Options

FG8901P01
FG8901P01-B000		Power Supply Unit for 8x00 product series, hot-plug capable
  • Wide range 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC
  • Single power input for connection to a single power source
FG8901P02
FG8901P02-B000		Power Supply Unit for 8x00 product series, hot-plug capable
  • Nominal 24VDC (18 – 36VDC)
  • Dual power inputs for connection of redundant power sources
FG8901P03
FG8901P03-B000		Power Supply Unit for 8x00 product series, hot-plug capable
  • Nominal 48VDC (36 – 76VDC)
  • Dual power inputs for connection of the redundant power sources
FG8901P04
FG8901P04-B000		Power Supply Unit for 8x00 product series, hot-plug capable
  • Nominal 110VDC (60 – 160VDC)
  • Dual power inputs for connection of the redundant power sources
FG8901P06
FG8901P06-B000		Power Supply Unit for 8x00 product series, hot-plug capable
  • Wide range 19 – 75VDC
  • Dual power inputs for connection of the redundant power sources


FG8701G01
FG8701G01-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • Rubidium oscillator for maximum precision freewheeling stability (432 ns per day after 3 months of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8701G02
FG8701G02-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Maximum precision multi-band, multi-constellation GNSS receiver for GPS, GLONASS, BeiDou and Galileo with all-in-view satellite tracking, advanced interference mitigation, monitoring and protection against ionospheric disturbances technology with connection via SMA connector (female)
  • Rubidium oscillator for maximum precision freewheeling stability (432 ns per day after 3 months of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8701G03
FG8701G03-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • hopf Secure Timing Platform (hSTP) for maximum precision and timing resilience with redundant GNSS receivers for multiple redundant time signal evaluation:
    • Maximum precision multi-band, multi-constellation GNSS receiver for GPS, GLONASS, BeiDou and Galileo with all-in-view satellite tracking, advanced interference mitigation, monitoring and protection against ionospheric disturbances technology
    • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC
    • Dual connection via redundant SMA connectors (female)
  • Rubidium oscillator for maximum precision freewheeling stability (432 ns per day after 3 months of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702D01
FG8702D01-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Receiver for:
    • Modulated DCF77 signal (77,5kHz) via SMA connector (female)
    • DCF77 (DCLS) and IRIG-B (DCLS, Manchester encoded) at 5V active / 5V TTL signal level via 2-pole pluggable screw terminal
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G01
FG8702G01-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G02
FG8702G02-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (23,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G03
FG8702G03-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G04
FG8702G04-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Redundant GNSS receivers:
    • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo
    • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC
    • Dual connection via redundant SMA connectors (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G05
FG8702G05-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Redundant GNSS receivers:
    • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo
    • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC
    • Dual connection via redundant SMA connectors (female)
  • OCXO oscillator for enhanced freewheeling stability (23,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G06
FG8702G06-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Redundant GNSS receivers:
    • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo
    • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC
    • Dual connection via redundant SMA connectors (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G11
FG8702G11-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G12
FG8702G12-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (23,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G13
FG8702G13-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G14
FG8702G14-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • Maximum precision multi-band, multi-constellation GNSS receiver for GPS, GLONASS, BeiDou and Galileo with all-in-view satellite tracking, advanced interference mitigation, monitoring and protection against ionospheric disturbances technology with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
FG8702G15
FG8702G15-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • hopf Secure Timing Platform (hSTP) for maximum precision and timing resilience with redundant GNSS receivers for multiple redundant time signal evaluation:
    • Maximum precision multi-band, multi-constellation GNSS receiver for GPS, GLONASS and BeiDou, Galileo with all-in-view satellite tracking, advanced interference mitigation, monitoring and protection against ionospheric disturbances technology
    • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC
    • Dual connection via redundant SMA connectors (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)

FG8801N02
FG8801N02-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • Time server with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    •  Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
FG8801F02
FG8801F02-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • Time server with 2x ethernet interface via 2x SFP transceiver module with LC fiber optic connector according to IEEE 802.3 for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
FG8802S00
FG8802S00-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • 4-channel output via 4x SMA connector (female), each channel individually configurable
  • Electrical Signal Output Type:
    • DC level shift (DCLS) (pulse width coded without carrier), 5V active / 5V TTL signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 12V active signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 24V active signal level
    • Sine wave carrier (amplitude modulated), 1kHz carrier frequency (only applicable for IRIG-B time signal output)
    • Manchester modulated, 1kHz carrier frequency (only applicable for IRIG-B time signal output)
  • Time signal output type:
    • IRIG-B with applicable standards:
      RCC IRIG STANDARD 200-04, RCC IRIG STANDARD 200-16,
      IEEE 1344-1995, IEEE C37.118-2005, IEEE C37.118.1-2011
      IEEE C37.118.1a-2014, IEEE/IEC 60255-118-1-2018
      AFNOR NF S 87-500 (2007)
    • DCF77 (DCLS), DCF77 for SIMEAS R (V2/V3)
    • Cyclic pulse (DCLS): PPS (pulse per second), PPM (pulse per minute), PPH (pulse per hour)
FG8802S01
FG8802S01-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • 4 channel output via 4x BNC connector (female), each channel individually configurable
  • Electrical signal output type:
    • DC level shift (DCLS) (pulse width coded without carrier), 5V active / 5V TTL signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 12V active signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 24V active signal level
    • Sine wave carrier (amplitude modulated), 1kHz carrier frequency (only applicable for IRIG-B time signal output)
    • Manchester modulated, 1kHz carrier frequency (only applicable for IRIG-B time signal output)
  • Time signal output type:
    • IRIG-B with applicable standards:
      RCC IRIG STANDARD 200-04, RCC IRIG STANDARD 200-16,
      IEEE 1344-1995, IEEE C37.118-2005, IEEE C37.118 .1-2011
      IEEE C37.118.1a-2014, IEEE/IEC 60255-118-1-2018
      AFNOR NF S 87-500 (2007)
    • DCF77 (DCLS), DCF77 for SIMEAS R (V2/V3)
    • Cyclic pulse (DCLS): PPS (pulse per second), PPM (pulse per minute), PPH (pulse per hour)
FG8802S02
FG8802S02-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • 4 channel output via 4x 2-pole pluggable screw terminal, each channel individually configurable
  • Electrical signal output type:
    • DC level shift (DCLS) (pulse width coded without carrier), 5V active / 5V TTL signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 12V active signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 24V active signal level
    • Sine wave carrier (amplitude modulated), 1kHz carrier frequency (only applicable for IRIG-B time signal output)
    • Manchester modulated, 1kHz carrier frequency (only applicable for IRIG-B time signal output)
  • Time signal output type:
    • IRIG-B with applicable standards:
      RCC IRIG STANDARD 200-04, RCC IRIG STANDARD 200-16,
      IEEE 1344-1995, IEEE C37.118-2005, IEEE C37.118.1-2011
      IEEE C37.118.1a-2014, IEEE/IEC 60255-118-1-2018
      AFNOR NF S 87-500 (2007)
    • DCF77 (DCLS), DCF77 for SIMEAS R (V2/V3)
    • Cyclic pulse (DCLS): PPS (pulse per second), PPM (pulse per minute), PPH (pulse per hour)
FG8802S03
FG8802S03-B000		Time Domain Controller Board for product series 8x00, hot-plug capable
  • 4 channel output via 4x TNC connector (female), each channel individually configurable
  • Electrical signal output type:
    • DC level shift (DCLS) (pulse width coded without carrier), 5V active / 5V TTL signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 12V active signal level
    • DC level shift (DCLS) (pulse width coded without carrier), 24V active signal level
    • Sine wave carrier (amplitude modulated), 1kHz carrier frequency (only applicable for IRIG-B time signal output)
    • Manchester modulated, 1kHz carrier frequency (only applicable for IRIG-B time signal output)
  • Time signal output type:
    • IRIG-B with applicable standards:
      RCC IRIG STANDARD 200-04, RCC IRIG STANDARD 200-16,
      IEEE 1344-1995, IEEE C37.11 8-2005, IEEE C37.118.1-2011
      IEEE C37.118.1a-2014, IEEE/IEC 60255-118-1-2018
      AFNOR NF S 87-500 (2007)
    • DCF77 (DCLS), DCF77 for SIMEAS R (V2/V3)
    • Cyclic pulse (DCLS): PPS (pulse per second), PPM (pulse per minute), PPH (pulse per hour)
FG8802S20
FG8802S20-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • 4 channel output via 4x fiber optic connector for multimode fiber optic cable, wave length 820nm, connector type ST, each channel individually configurable
  • Time signal output type:
    • IRIG-B with applicable standards:
      RCC IRIG STANDARD 200-04, RCC IRIG STANDARD 200-16,
      IEEE 1344-1995, IEEE C37.118-2005, IEEE C37.118.1-2011
      IEEE C37.118.1a-2014, IEEE/IEC 60255-118-1-2018
      AFNOR NF S 87-500 (2007)
    • DCF77 (DCLS), DCF77 for SIMEAS R (V2/V3)
    • Cyclic pulse : PPS (pulse per second), PPM (pulse per minute), PPH (pulse per hour)
FG8803S02
FG8803S02-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • 2 channel output of serial time datagram via 2x 9-pole D-SUB connector (male), each channel individually configurable
  • Electrical signal output type: each channel available at RS232 and RS485 signal level
  • Time signal output type: hopf  standard serial time datagram types, IEC-103, ABB Melody, ABB Freelance, Trimble TSIP, SAT1703 / SICAM RTU, SINEC H1 Extended
FG8803S20
FG8803S20-B000		Time Service Provider Board for product series 8x00, hot-plug capable
  • 2 channel output of serial time datagram via 2x2 fiber optic connector for multimode fiber optic cable, wave length 820nm, connector type ST, each channel individually configurable
  • Time signal output type: hopf  standard serial time datagram types, IEC-103, ABB Melody, ABB Freelance, Trimble TSIP, SAT1703 / SICAM RTU, SINEC H1 Extended

FG8800M00
FG8800M00-B000		Management Controller Board for product series 8x00, hot-plug capable
  • Dry contact for alarm / status output
  • Management controller with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog, Huma® software (hopf unified management application)
  • Time server for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)

LI8100A01
LI8100A01-B000		Activation key for activation of the following feature for product series 8x00:
  • Support for Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR) according to IEC 62439-3:2021 + COR1:2023 for use as Dual Attached Node (DAN)
  • Activation key for one (1) board
LI8100A02
LI8100A02-B000		Activation key for activation of the following feature for product series 8x00:
  • Support for Precision Time Protocol (PTP) according to IEEE Std 1588™-2019 with support for IEEE Standard Profile for use of IEEE 1588™ Precision Time Protocol in Power System Applications (Power Profile v1) according to IEEE Std C37.238™-2011, Profile for Power Utility Automation according to IEC 61850-9-3:2016, IEEE Standard Profile for use of IEEE 1588™ Precision Time Protocol in Power System Applications (Power Profile v2) according to IEEE Std C37.238™-2017 and Telecom Profile for phase/time synchronization according to ITU-T G.8275.1 (from hardware Rev B)
  • Activation key for one (1) board
LI8100A03
LI8100A03-B000		Activation key for activation of the following feature for product series 8x00:
  • Support for SIMATIC NET SINEC H1 Time Datagram Protocol
  • Activation key for one (1) board
LI8100A04
LI8100A04-B000		Activation key for activation of the following feature for product series 8x00:
  • Support for Precision Time Protocol (PTP) according to IEEE Std 1588™-2019 as time source for time domain controller boards
  • Activation key for one (1) board
LI8100A05
LI8100A05-B000		Activation key for activation of the following feature for product series 8x00:
  • Support of the Network Time Protocol (NTP/SNTP) according to RFC 5905 as time source for Time Domain Controller.
  • Activation key for one (1) board

FG9000F00hopf SFP transceiver module, 1000BASE-SX
  • Multi-mode fiber (MMF), wavelength 850nm
  • Max. cable distance:
    • 550m@50/125µm OM2 MMF
    • 275m@62.5/125µm OM1 MMF
  • Max. data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F01hopf SFP transceiver module, 1000BASE-LX/LH
  • Single-mode fiber (SMF), wavelength 1310nm
  • Max. cable distance:
    • 10km@OS1 SMF
    • 20km@OS2 SMF
  • Max. data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F02hopf SFP transceiver module, 100BASE-FX
  • Multi-mode fiber (MMF), wavelength 1310nm
  • Max. cable distance: 2km@50/125µm OM2 MMF 1km@62.5/125µm OM1 MMF
  • Max. data rate: 100Mbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F03hopf SFP transceiver module, 1000BASE-EX
  • Single-mode fiber (SMF), wavelength 1310nm
  • Max. cable distance: 40km@OS2 SMF
  • Max. data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG8000H01Blind panel for product series 8x00 for 4HP slots, spare part

Article numbers ending with ‘-B000’ have to be used for purchase orders for systems where all components are intended to be assembled at the hopf  factory.

Article numbers without the suffix '-B000' are considered spare parts where each component is delivered in individual packaging.



  • 8100-ProductSeries ProductSheet v0203 EN 2 MB Download

  • 8100-ProductSeries Technical-Documentation v0300 EN 2 MB Download
  • FG8803S02 Technical-Documentation v0200 EN 983 KB Download
  • hUMA Customer-Manual v0900 EN 8 MB Download
  • Obsolet - hUMA Customer-Manual v0800 EN 8 MB Download

  • 8100-Product-Series update_20250313 v0100 26 MB Download
  • 8100-Product-Series Firmware-Release-Notes-20250313 v0100 EN 294 KB Download
  • Obsolet - 8100-Product-Series update-20241029 v0100 26 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20241029 v0100 EN 271 KB Download
  • Obsolet - 8100-Product-Series update-20240819 v0100 25 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20240819 v0100 EN 261 KB Download
  • Obsolet - 8100-Product-Series update-20240703 v0100 25 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20240703 v0100 EN 259 KB Download
  • Obsolet - 8100-Product-Series update-20240307 25 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20240307 EN 239 KB Download
  • Obsolet - 8100-Product-Series update-20240305 v0200 46 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20240305 v0200 EN 246 KB Download
  • Obsolet - 8100-Product-Series update-20231117 43 MB Download
  • Obsolet - 8100-Product-Series Firmware-Release-Notes-20231117 EN 137 KB Download
  • Obsolet - FG8101G01 update v0106 480 KB Download
  • Obsolet - FG8702G01 update v0201 43 MB Download
  • Obsolet - FG8702G02 update v0201 43 MB Download
  • Obsolet - FG8702G03 update v0201 43 MB Download
  • Obsolet - FG8801N02 update v0201 43 MB Download
  • Obsolet - FG8101G01 update v0105 503 KB Download
  • Obsolet - FG8702G01 update v0200 42 MB Download
  • Obsolet - FG8702G02 update v0200 42 MB Download
  • Obsolet - FG8702G03 update v0200 42 MB Download
  • Obsolet - FG8801N02 update v0200 42 MB Download
  • Obsolet - FG8702G01 update v0106 44 MB Download
  • Obsolet - FG8702G02 update v0106 44 MB Download
  • Obsolet - FG8702G03 update v0106 44 MB Download
  • Obsolet - FG8801N02 update v0106 44 MB Download
  • Obsolet - FG8800M00 update v0600 45 MB Download
