1000 Product Series

The 1000 product series are fully modular time reference systems that support the Global Navigation Satellite Systems (GNSS) GPS, Galileo, GLONASS, BeiDou and IRNSS/NavIC, as well as NTP, PTP and various other time sources for precise and reliable time synchronization at extremely competitive prices and are particularly well suited for critical infrastructure applications.

Key Features Description Technical Data Standards Products Download
  • Compact modules for DIN rail mounting in automation cabinets
  • Easy functionality extension with up to six modules any time on site in case of changed or additional synchronization requirements
  • Extended temperature range for reliable operation between –40° and +70°C
  • GPS, Galileo, GLONASS, BeiDou, IRNSS/NavIC time sources for reliable satellite synchronization
  • Average accuracy of ±30 ns to UTC, peak accuracy of ±100 ns to UTC for demodulated IRIG-B and pulse outputs and ±1 μs for modulated IRIG-B output
  • Synchronization of IEC 61850 compatible devices with support for highest performance class T5
  • Typical NTP time stamp accuracy <30 μs
  • Precision Time Protocol (PTP) option with peak time stamp accuracy ±100 ns, support for IEC 61850-9-3:2016 Power Utility Automation Profile, IEEE C37.238-2017 Power Profile
  • IEC 62439-3:2016 Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR) option, feature combinable with PTP

  • Built-in by default GNSS firewall with multi-layered anti-jamming and anti-spoofing technologies and interference mitigation
  • Multi redundant time sources and time source prioritization safeguard precise and resilient timing signal synchronization even with most demanding availability requirements

  • huma® web edition, HTTPS web interface
  • Integrated event log
  • Diagnostics and monitoring via SNMP v2c and v3 read operations (MIB II, hopf private enterprise MIB, NTPv4 MIB, PTPBASE MIB, IEEEC37.238 MIB, IEC-62439-3 MIB)
  • Event notification using SNMP traps, email messaging and / or external SYSLOG server

  • Separation of diagnostic and operational / productivity networks for guaranteed cyber security
  • Role based access control (RBAC) with support of LDAP and RADIUS authentication according to IEC 62351-8:2020
  • Built-in by default network firewall for provision of barrier against network-based intrusion attempts
  • Certificate signed configuration files and firmware packages

The 1000 product series time reference systems have been designed for mission critical applications with high requirements in terms of flexibility, availability, security and the support of a wide variety of time synchronization standards commonly used in public infrastructure, railway technology, air traffic control, power utility, digital smart grid and industry automation.
The compact and modular industrial-grade system design facilitates easy spare part management and minimum mean time to repair (MTTR). The modularity of the system also ensures security of investment if the requirements for the system should increase or change in the future.
For high availability each module is powered by its own integrated power supply. All modules are available either for wide range DC input voltage 14 – 160VDC with redundant power inputs or for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input.

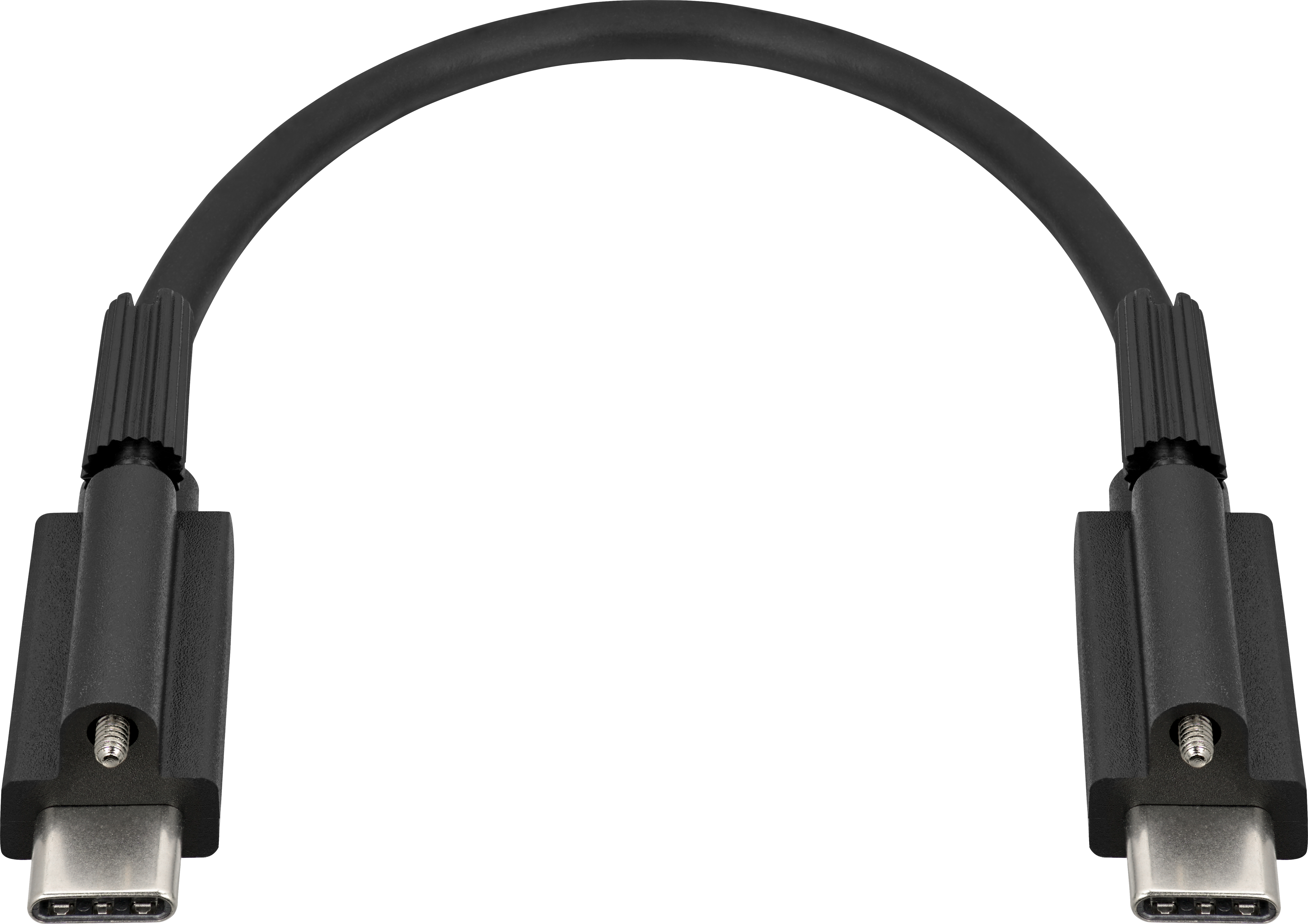

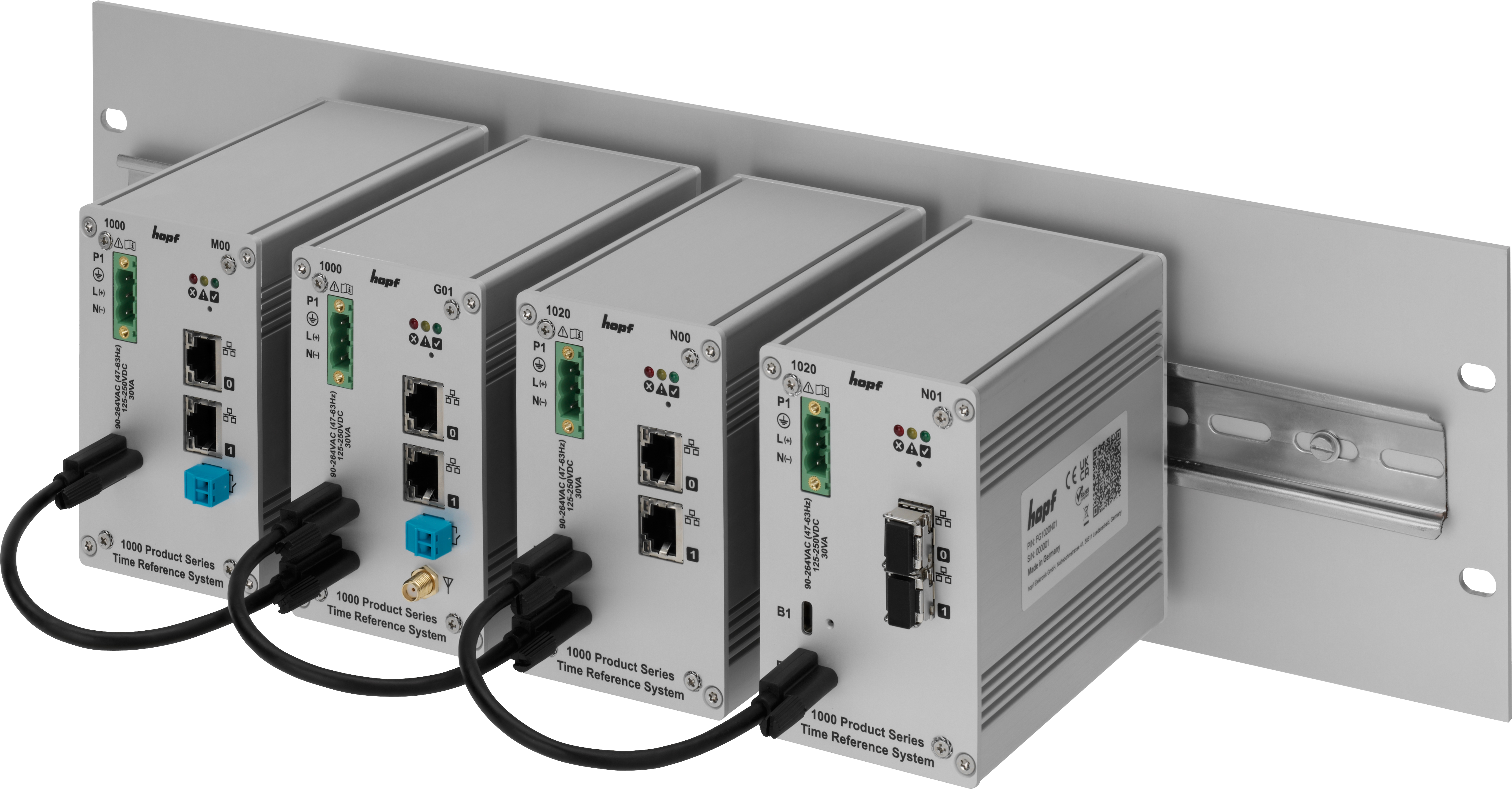

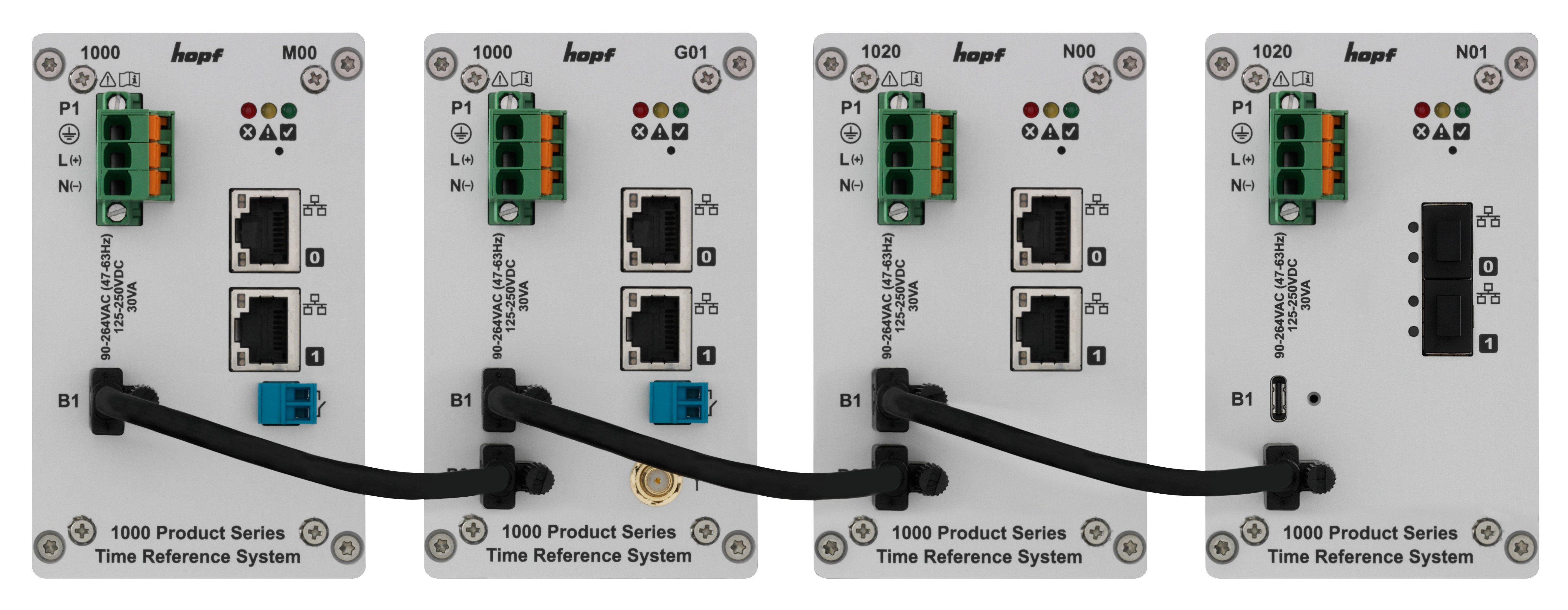

Up to six modules can be connected in series to form a single time reference system with time domain controller module (time signal input from time source), service provider modules (time signal output / distribution to customer application) and management controller module. The interconnection logic ensures that power failure of one module does not affect continuous operation of the remaining modules.

The 1000 product series time domain controllers facilitate evaluation of time signals from multiple time sources like GNSS satellite systems, NTP/PTP network time signals as well as various other time sources. On receiver and firmware level the time domain controllers implement consistency checks and statistical tests on features such as automatic gain control (AGC), clock error, signal quality, signal power, propagation delay and the angle of arrival in order to safeguard error-free and leap-free time signal evaluation. In case of signal loss due to antenna failure or identification of time signal mismatch due to jamming or spoofing attacks the time domain controller clock automatically switches to available redundant time sources or the integrated oscillator circuit holdover ensuring the oscillator dependent freewheeling accuracy. For unprecedented availability multi redundant time source configurations with prioritizable fall back time sources are supported.

Time domain controller modules with integrated management controller as well as standalone independent management controller modules allow easy configuration and monitoring using the hopf unified management application huma® web edition which features secure access to the system via an intuitive to use state-of-the-art web interface. All interconnected modules can be centrally configured. System configurations may be saved for the entire connected time reference system or for each individual module separately.
The management controller continuously monitors the health status of all connected modules and components. It collects diagnostic and statistical data for the integrated event log and for real time notification of critical events to external IT management systems using email messaging, SNMP traps or external SYSLOG server.

The current demand for the convergence of Information Technologies (IT) and Operational Technologies (OT) in critical infrastructure requires to ensure cyber security and reliability in compliance with regulatory requirements. The modular system design of the 1000 product series allows complete separation of networks (e.g. process bus for power utility applications) for guaranteed cyber security while allowing complete access to diagnostic data and critical events for IT network management via integrated or standalone management controller. Role based access control according to the most up-to-date standards safeguards secure access to the management controller by authorized staff. The built-in by default network firewall feature adds even increased security against network-based intrusion attempts by limiting access to the minimum necessary network connections and services. All configuration files and firmware update packages may be signed by certificate to ensure authenticity and eligibility for application. The system fulfills security level 2 according to IEC 62443-4-2:2019.
HousingDIN rail housing with mounting clip for 35mm DIN rail according to DIN EN 60715 TH35

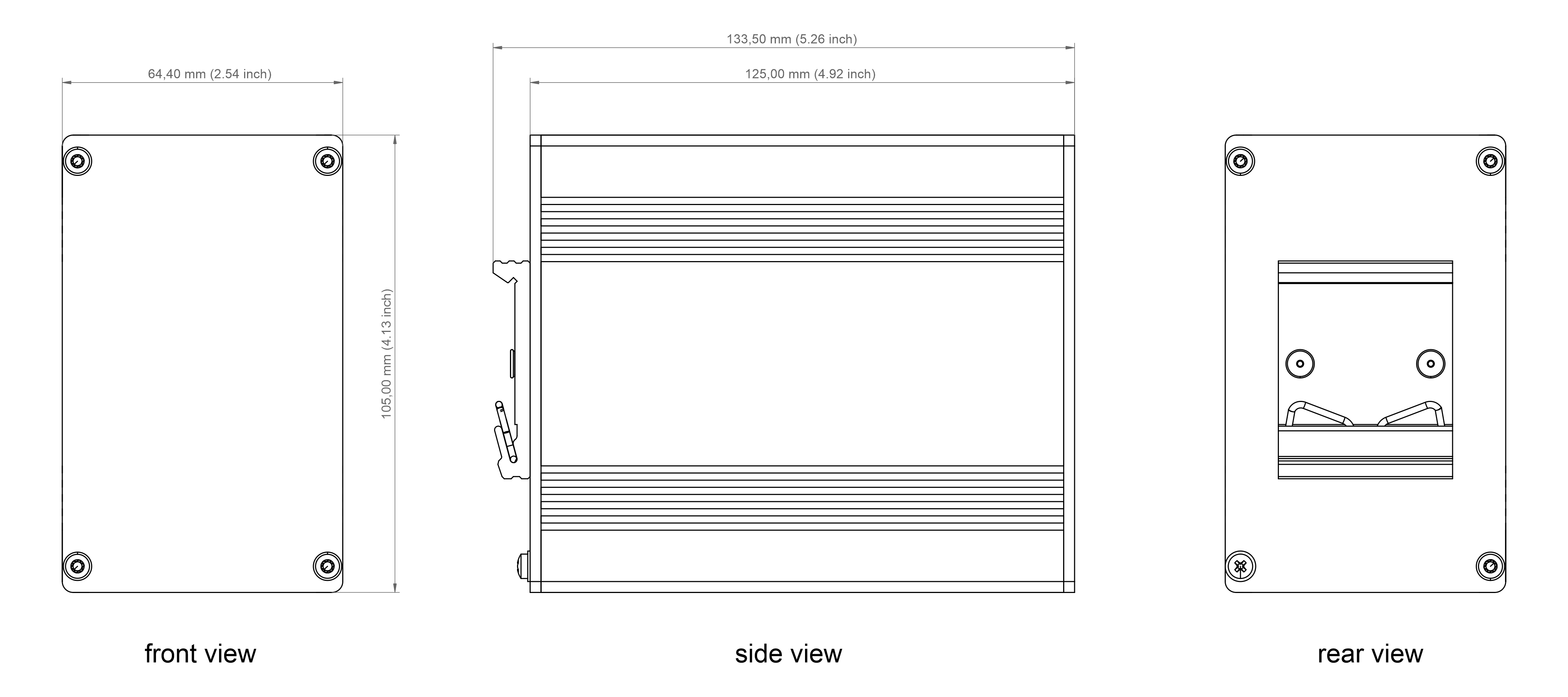

DimensionsWidth: 64.4 mm (2.54 inch) Height: 105.00 mm (4.13 inch) Depth: 133.5 mm (5.26 inch), without connectors on front plate
Materialanodized aluminum
Colornatural colored
Protection ClassIP50 according to IEC 60529
Weight0.8 kG (1.76 lbs)
Scheme



Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F) according to IEC 61850-3 and IEEE 1613
Storage Temperature-40 °C to +70 °C (-40 °F to +158 °F) according to IEC 61850-3 and IEEE 1613
Operating Altitudeup to 5,000 m (16,404 ft) above sea level according to IEC 61850-3
Relative Humidity5 to 95 % (non-condensing) at 40 °C (104 °F) according to IEC 61850-3
Operating EnvironmentPollution Degree: 3 Overvol tage Category: I I
Reliabi lity (MTBF)300.000h


Temperature
IEC 60068-2-1Severity Level 16h at -40°C
IEC 60068-2-2Severity Level 16h at +85°C storage
Severity Level 16h at +65°C operating
IEC 60068-2-14Severity Level -20° to +55°C, 5 cycles
IEC 60068-2-30Severity Level +25° to +55°C, 6 cycles, RH 95%
IEC 60068-2-787Severity Level 240h at +40°C, RH 95%
Mechanical Stress
IEC 60255-21-1Severity Level Class 2
IEC 60255-21-2Severity Level Class 2
IEC 60255-21-3Severity Level Class 2
Electromagnetic Compatibility
EN 55032Class B
(CISPR 32)
IEC 61000-4-2Severity Level 48kV contact / 15kV air
IEC 61000-4-3Severity Level 310V/m
IEC 61000-4-4Severity Level 44kV power connector
4kV signal connector
IEC 61000-4-5Severity Level 42kV line-to-line
4kV line-to-earth
IEC 61000-4-6Severity Level 310V
IEC 61000-4-11Severity Level X30% one period
60% 50 periods
100% 5 periods
100% 50 periods
IEC 610004-12Severity Level 31kV line-to-line
2,5kV line-to-earth
IEC 61000-4-17Severity Level 310%
IEC 61000-4-18Severity Level 31kV line-to-line
2,5kV line-to-earth
IEC 61000-4-29Severity Level X30% 0,1sec
60% 0,1sec
100% 0,05sec

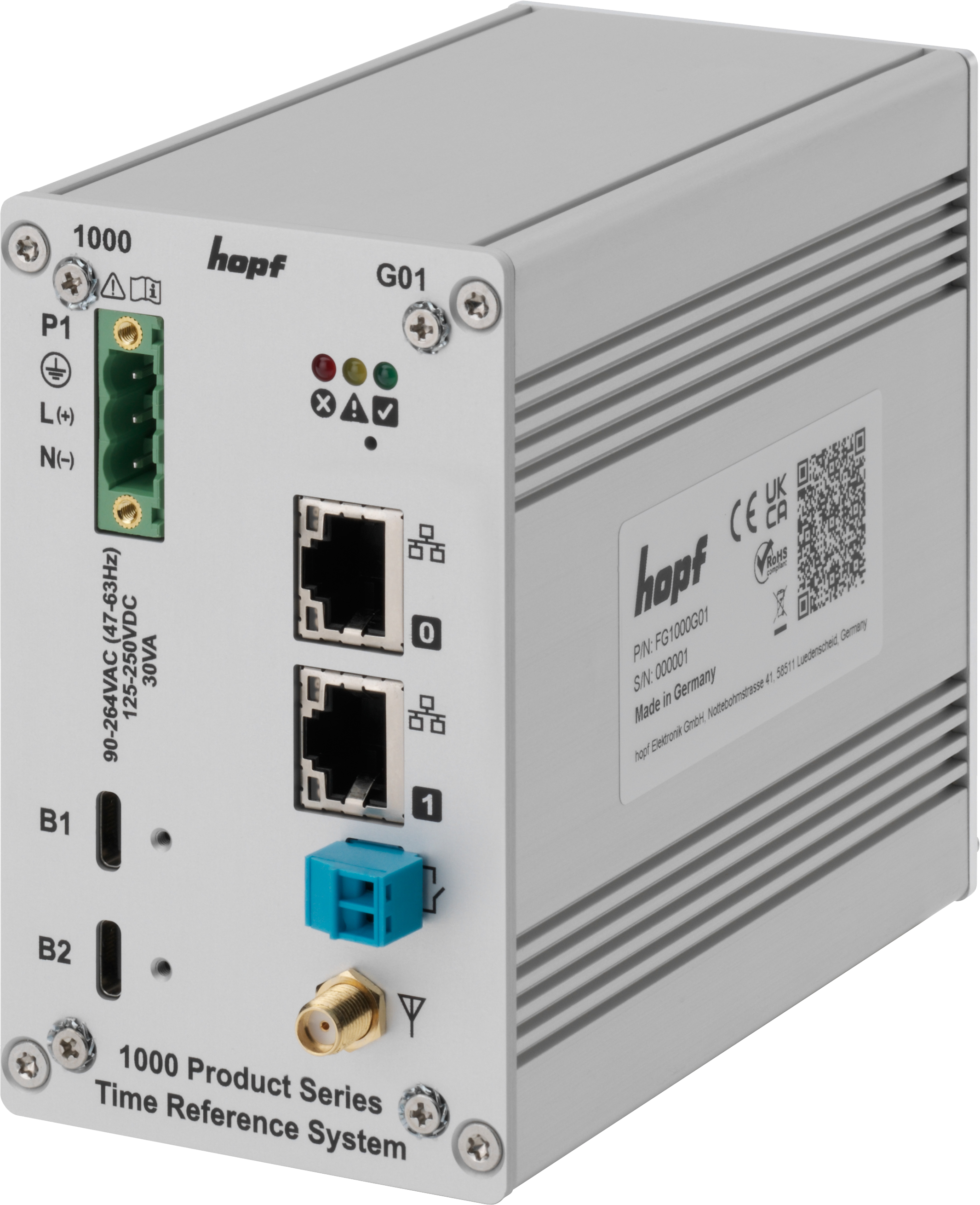

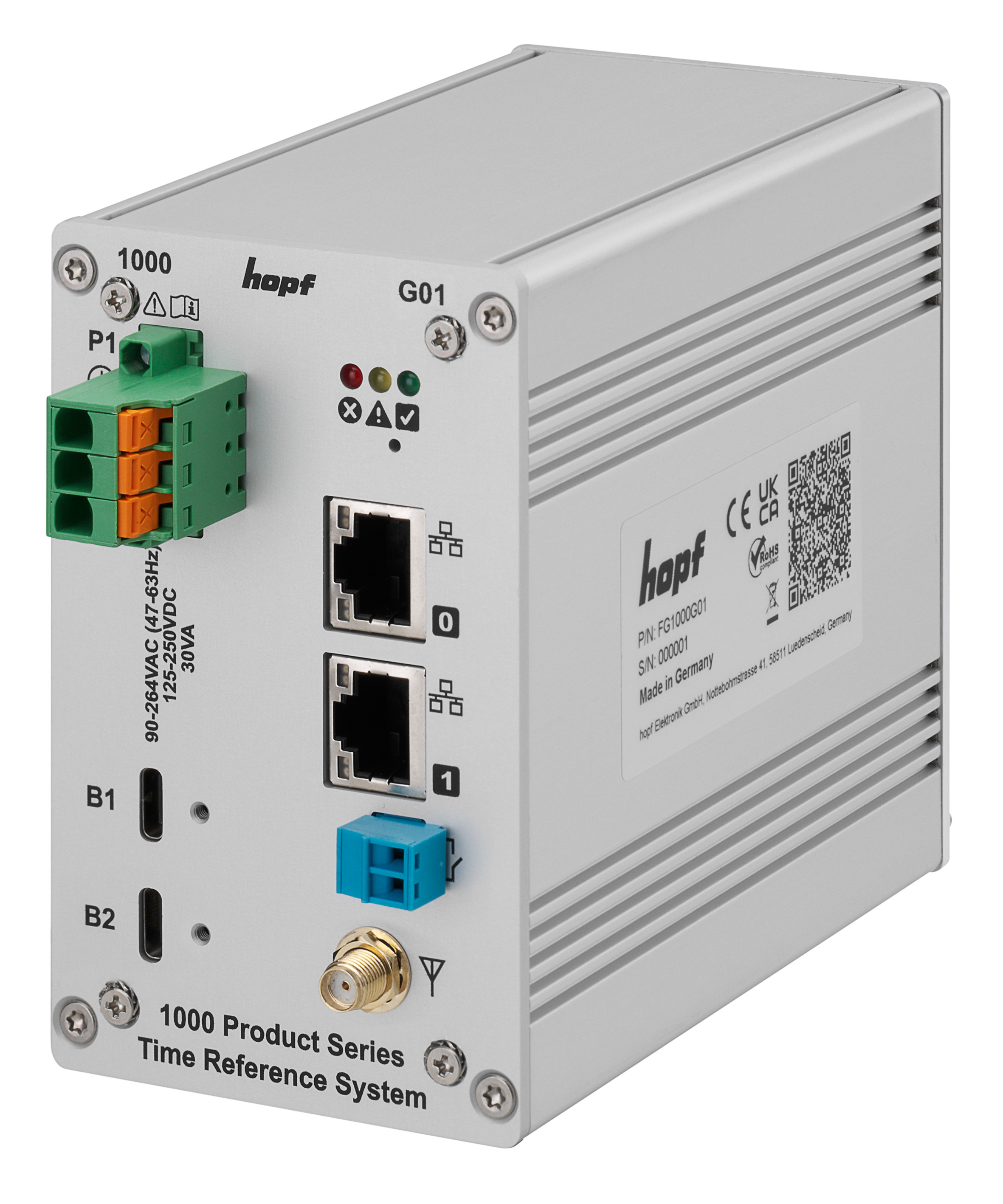

FG1000G01
Power Supply with single power input
Input Voltage:90-264VAC; 125-250VDC
Input Frequency:47-63Hz for AC input voltage
Input Current:max. 0,4A@230VAC
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Operating Voltage+/-250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤ 40 seconds depending on the configuration
Antenna
Supply Voltage5V±10%
Currentmax. 100mA
Receiver
Receiver typeStandard precision, single-band L1
GNSS systemsGPS, GLONASS, Beidou, Galileo
Channels92
Time to first fixWarm start: <2s; Cold start: <29s
SensitivityTracking: -166dBm; Warm start: -159dBm
AccuracyRMS 30ns
Clock Accuracy
Internal PPS±15ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant    temperature after 2 days of continuous operation
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
FG1000G02
Identical to FG1000G01 except holdover
Clock Accuracy
Holdover25,9µs per day after 7 days of  continuous operation (±1°C)
FG1000G03
Identical to FG1000G01 except holdover
Clock Accuracy
Holdover4,32µs per day after 7 days of continuous operation (±1°C)
 FG1001G01
Power Supply with redundant power inputs
Input Voltage:14-160VDC
Input Current:max. 2,2A@14VDC
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Operating Voltage+/-250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤ 40 seconds depending on the configuration
Antenna
Supply Voltage5V±10%
Currentmax. 100mA
Receiver
Receiver typeStandard precision, single-band L1
GNSS systemsGPS, GLONASS, Beidou, Galileo
Channels92
Time to first fixWarm start: <2s; Cold start: <29s
SensitivityTracking: -166dBm; Warm start: -159dBm; Cold start: -148dBm
AccuracyRMS 30ns
Clock Accuracy
Internal PPS±15ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant    temperature after 2 days of continuous operation
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
FG1001G02
Identical to FG1000G01 except holdover
Clock Accuracy
Holdover25,9µs per day after 7 days of continuous operation (±1°C)
FG1001G03
Identical to FG1000G01 except holdover
Clock Accuracy
Holdover4,32µs per day after 7 days of continuous operation (±1°C)
FG1000G11; FG1000G12; FG1000G13
Identical to FG1000G01/FG1000G02/FG1000G03 except receiver and clock accuracy
Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fixWarm start: <2s; Cold start: <29s
SensitivityTracking: -167dBm; Warm start: -159dBm; Cold start: -148dBm
Accuracy1-sigma: 10ns; 1-sigma jitter removed:  5ns
Clock Accuracy
Internal PPS±10ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant temperature after 2 days of continuous operation
FG1001G11; FG1001G12; FG1001G13
Identical to FG1001G01/FG1001G02/FG1001G03 except receiver and clock accuracy
Receiver
Receiver typeHigh precision, dual-band L1/L5/E5a
GNSS systemsGPS, GLONASS, Beidou, Galileo, IRNSS/NavIC
Time to first fixWarm start: <2s; Cold start: <29s
SensitivityTracking: -167dBm; Warm start: -159dBm; Cold start: -148dBm
Accuracy1-sigma 10ns; 1-sigma jitter removed 5ns
Clock Accuracy
Internal PPS±10ns (after 5 minutes GNSS reception with clear sky view, fixed position mode)
Holdover236,71µs per day at constant temperature after 2 days of continuous operation

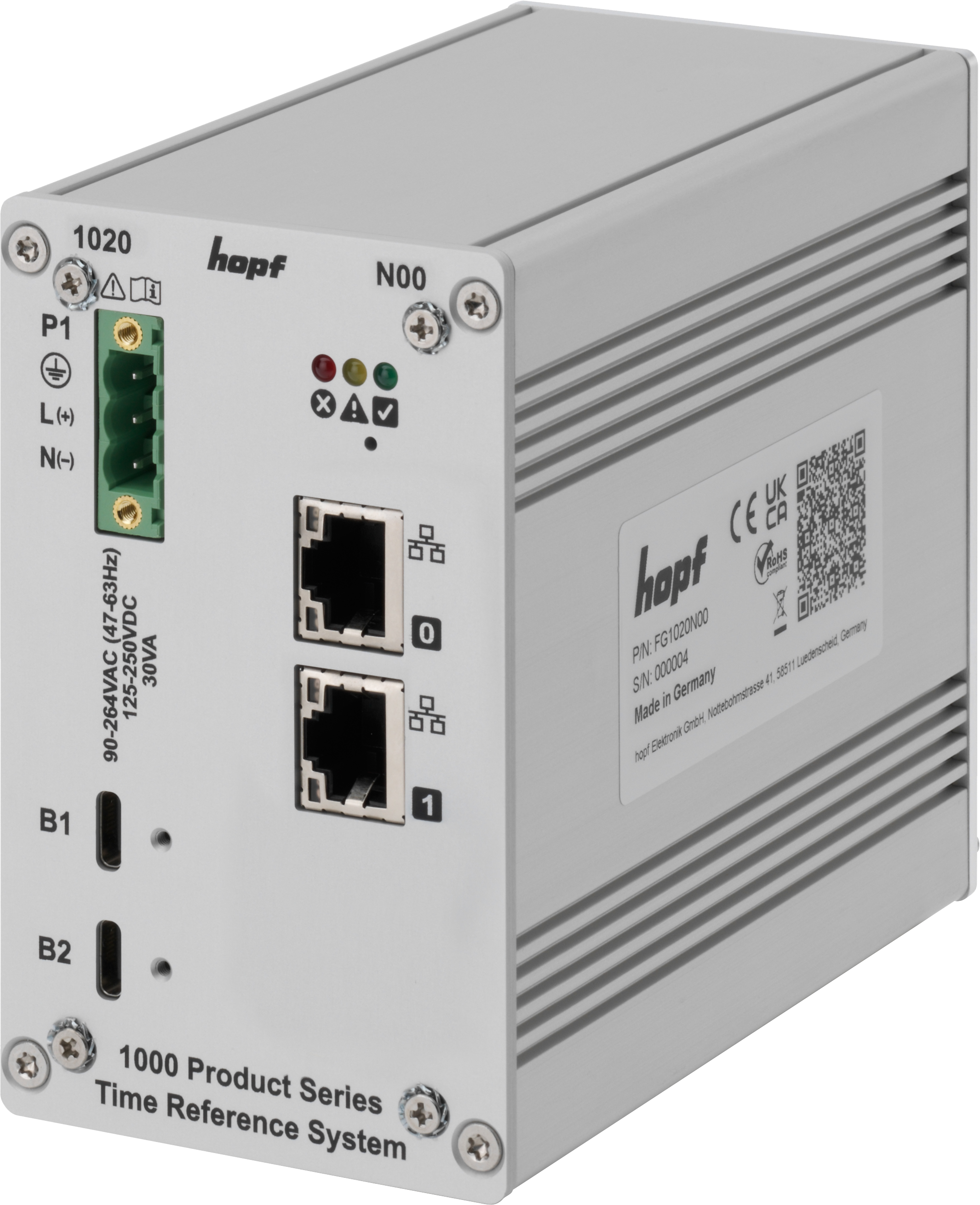

FG1020N00
Power Supply with single power input
Input Voltage:90-264VAC; 125-250VDC
Input Frequency:47-63Hz for AC input voltage
Input Current:max. 0,4A@230VAC
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS

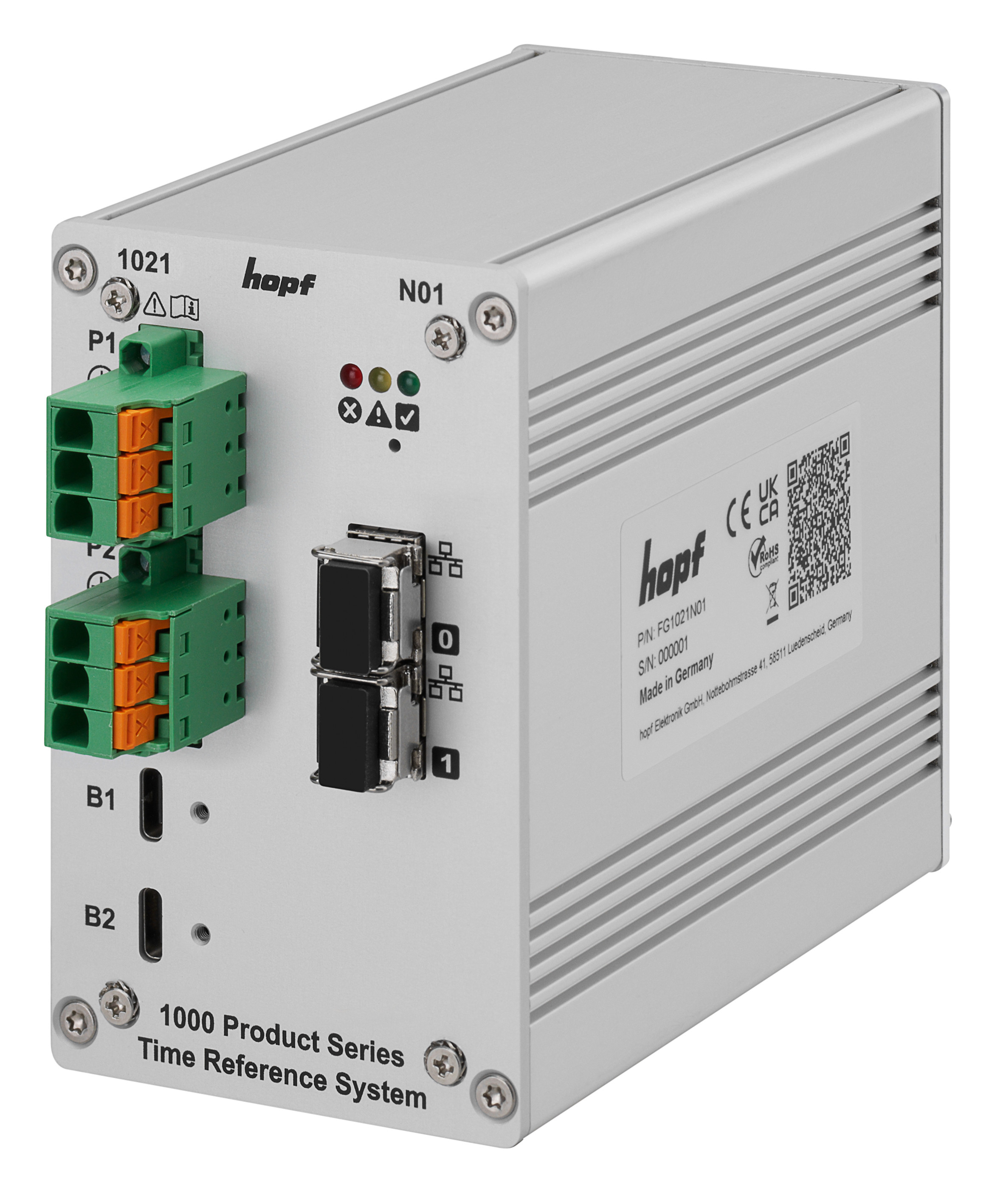

FG1021N00
Identical to FG1020N00 except power supply
Power Supply with redundant power inputs
Input Voltage:14-160VDC
Input Current:max. 2,2A@14VDC

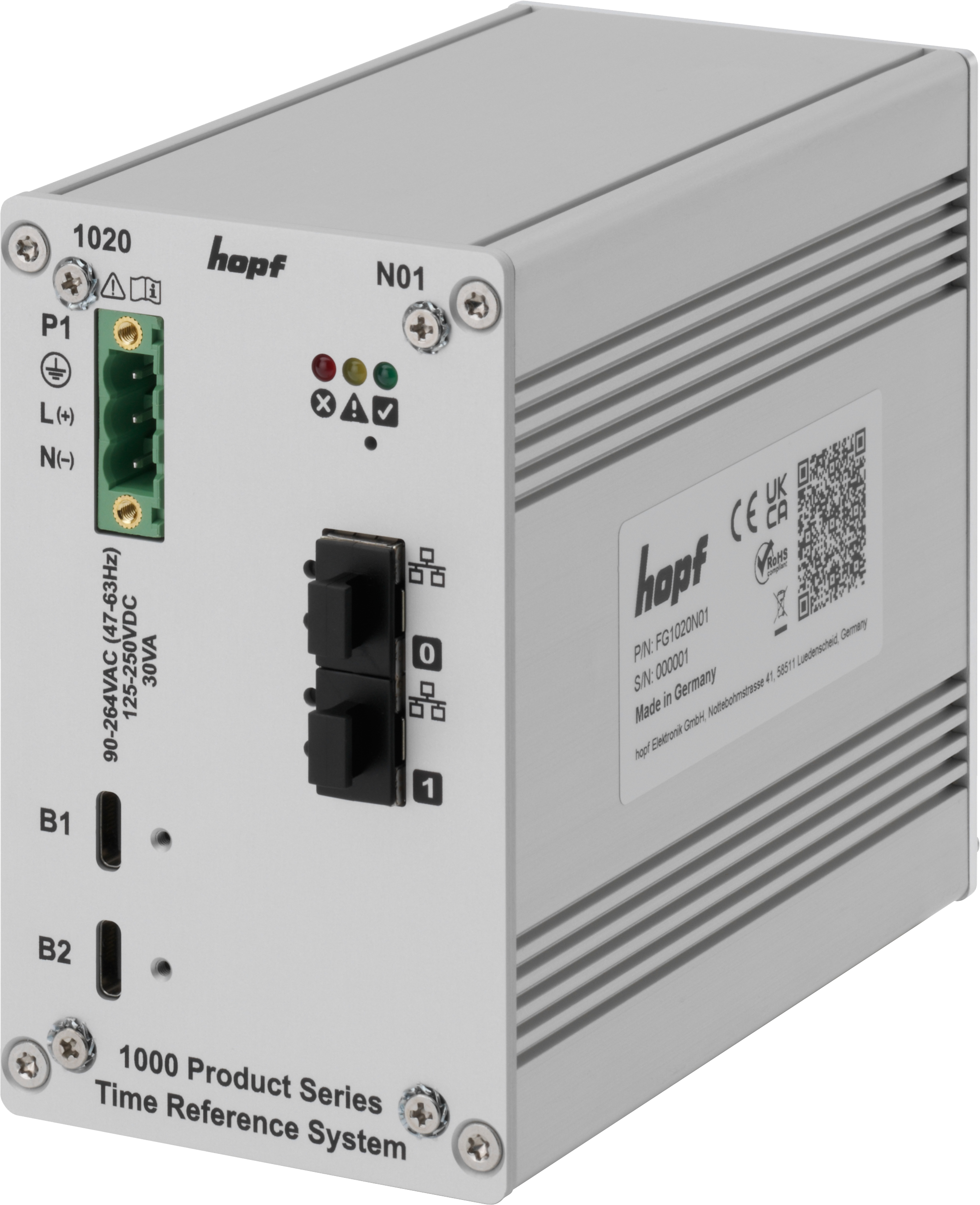

FG1020N01
Power Supply with single power input
Input Voltage:90-264VAC; 125-250VDC
Input Frequency:47-63Hz for AC input voltage
Input Current:max. 0,4A@230VAC
Ethernet
Ports2
Data Ratedependent on SFP transceiver module
ConnectorLC
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000
PTP
Timestamp Accuracytyp. <50ns to system internal PPS
FG1021N01
Identical to FG1020N01 except power supply
Power Supply with redundant power inputs
Input Voltage:14-160VDC
Input Current:max. 2,2A@14VDC

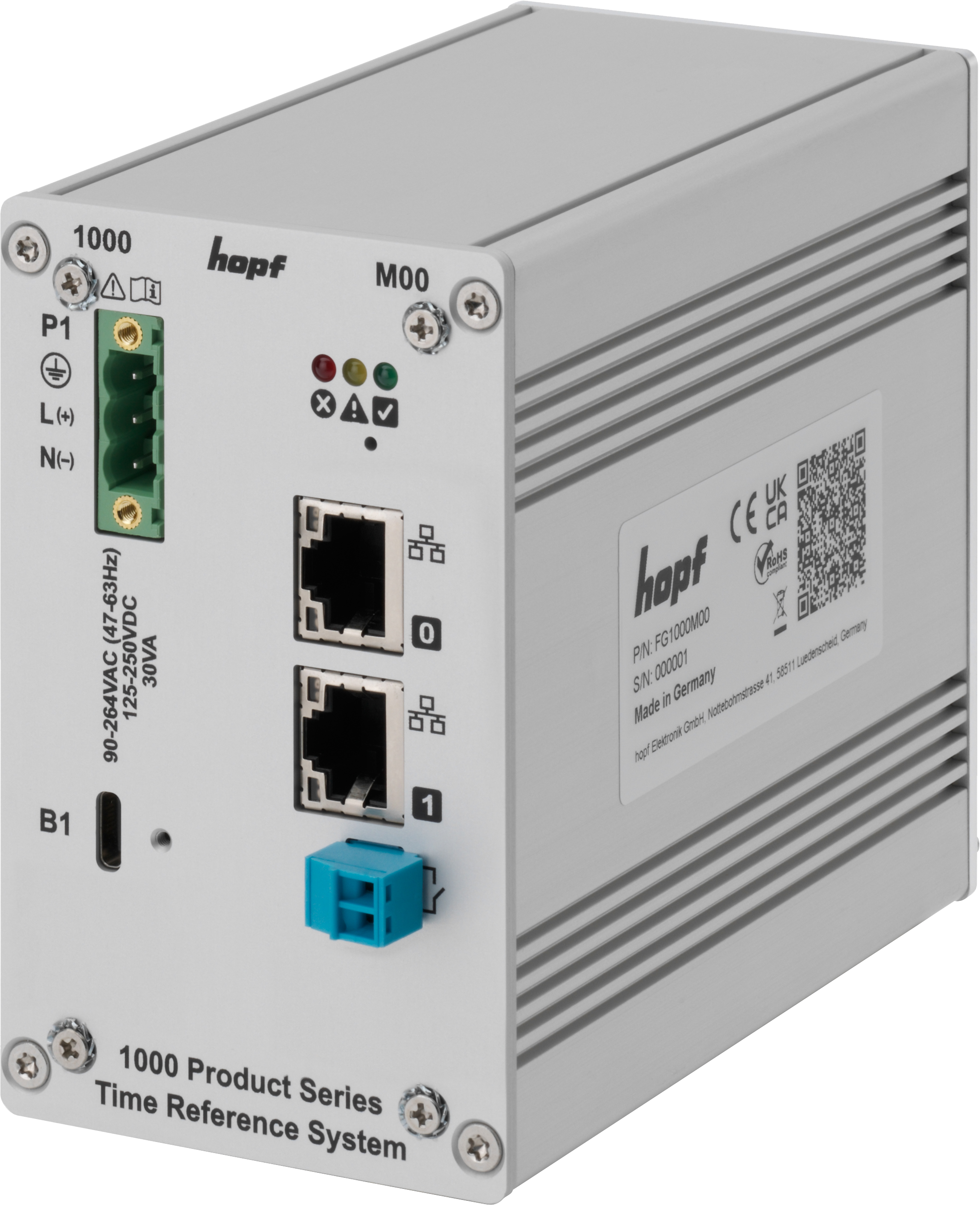

FG1000M00
Power Supply with single power input
Input Voltage:90-264VAC; 125-250VDC
Input Frequency:47-63Hz for AC input voltage
Input Current:max. 0,4A@230VAC
Ethernet
Ports2
Data Rate10/100/1000Mbps
ConnectorRJ45
Status Output
Dry Contact
Operating Voltage+/-250VDC
Operating Currentmax. 120mA
Boot time
typ. ≤ 40 seconds depending on the configuration
Time Accuracy
Internal time accuracy±15ns to system internal PPS
NTP
Timestamp Accuracytyp. <30µs
Requests per second25.000

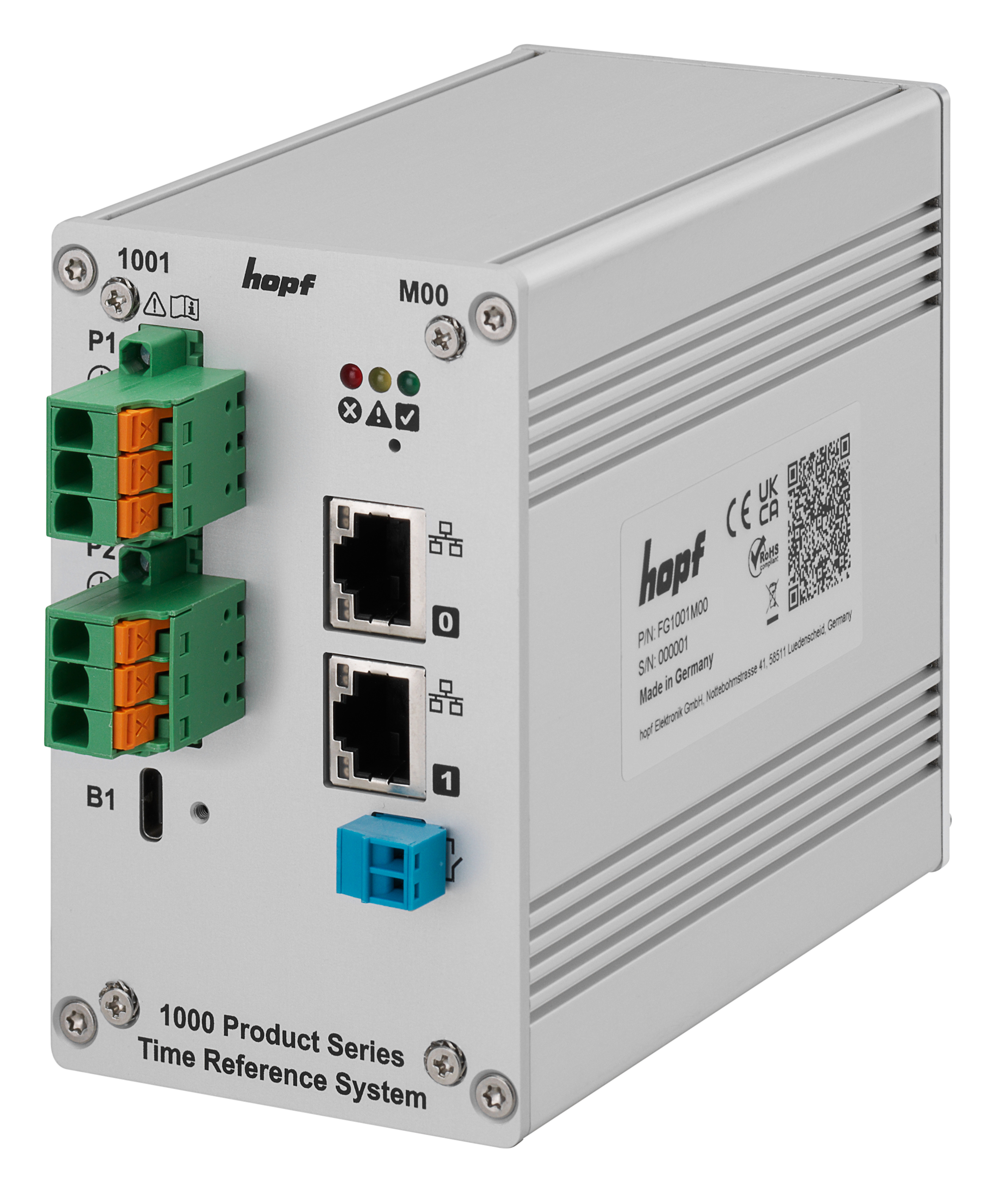

FG1001M00
Identical to FG1000M00 except power supply
Power Supply with redundant power inputs
Input Voltage:14-160VDC
Input Current:max. 2,2A@14VDC

IEC 61000-3-2:2018 + A1:2020 + ISH1:2021Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-3:2013 + A1:2017 + A2:2021 + A2:2021/COR1:2022Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
IEC 61000-4-2:2008Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement techniques – Electrostatic discharge immunity test
IEC 61000-4-3:2020Electromagnetic compatibility (EMC) – Part 4-3: Testing and measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4:2012Electromagnetic compatibility (EMC) – Part 4-4: Testing and measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2014 + A1:2017Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test
IEC 61000-4-6:2013Electromagnetic compatibility (EMC) – Part 4-6: Testing and measurement techniques – Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-11:2020 + COR1:2020Electromagnetic compatibility (EMC) – Part 4-11: Testing and measurement techniques – Voltage dips, short interruptions and voltage variations immunity tests
IEC 61000-4-12:2017Electromagnetic compatibility (EMC) – Part 4-12: Testing and measurement techniques – Ring wave immunity test
IEC 61000-4-17:1999 + A1:2001Electromagnetic compatibility (EMC) - Part 4-17: Testing and measurement techniques - Ripple on d.c. input power port immunity test
IEC 61000-4-18:2019 + COR1:2019Electromagnetic compatibility (EMC) - Part 4-18: Testing and measurement techniques - Damped oscillatory wave immunity test
IEC 61000-4-29:2000Electromagnetic compatibility (EMC) - Part 4-29: Testing and measurement techniques; Voltage dips, short interruptions and voltage variations on d.c. input power port immunity tests
IEC 61000-6-2:2016Electromagnetic compatibility (EMC). Part 6-2: Generic standards – Immunity for industrial environments
IEC 61000-6-3:2020Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emission standard for residential, commercial and light-industrial environments
IEC 61000-6-4:2018Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
IEC 61000-6-5:2015/COR1:2017Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
EN 50121-4:2016Railway applications - Electromagnetic compatibility - Part 4: Emission and immunity of the signalling and telecommunications apparatus
EN 55016-2-1:2014/A1:2017(CISPR 16-2-1:2014+A1:2017)Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-1: Methods of measurement of disturbances and immunity - Conducted disturbance measurements
EN 55016-2-3:2017/A1:2019(CISPR 16-2-3:2016+A1:2019)Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-3: Methods of measurement of disturbances and immunity - Radiated disturbance measurements
EN 55032:2015/AC:2016/ A11:2020/A1:2020(CISPR 32:2015 + COR1:2016 + A1:2019)Electromagnetic compatibility of multimedia equipment – Emission Requirements (150kHz – 30 MHz)
EN 55035:2017(CISPR 35:2016, modified)Electromagnetic compatibility of multimedia equipment – Immunity requirements

IEC 62368-1:2018Audio/video, information and communication technology equipment – Part 1: Safety requirements
IEC 60529:1989/A1:1999 /A2:2013Degrees of protection provided by enclosures (IP Code)

IEC 62443-4-2:2019Security for industrial automation and control systems - Part 4-2: Technical security requirements for IACS components

EN 301 489-1 V2.2.3 (2019-11)Electromagnetic Compatibility (EMC) standard for radio equipment and services – Part 1: Common technical requirements – Harmonized Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU
EN 301 489-19 V2.1.1 (2019-04)Electromagnetic Compatibility (EMC) standard for radio equipment and services – Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band providing data communications and GNSS receivers operating in the RNSS band (ROGNSS) providing positioning, navigation and timing data – Harmonized Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU
EN 303 413 V1.2.1 (2021-04)Satellite Earth Stations and Systems (SES) – Global Navigation Satellite System (GNSS) receivers – Radio equipment operating in the 1164 MHz to 1300 MHz and 1559 MHz to 1610 MHz frequency bands – Harmonized Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU

IEC 60068-2-1:2007Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2:2007Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-30:2005Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic (12 h + 12 h cycle)
IEC 60255-21-1:1988Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 1: Vibration tests (sinusoidal)
IEC 60255-21-2:1988Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 2: Shock and bump tests
IEC 60255-21-3:1993Electrical relays - Part 21: Vibration, shock, bump and seismic tests on measuring relays and protection equipment; section 3: Seismic tests
IEC 60721-2-3:2013Classification of environmental conditions - Part 2-3: Environmental conditions appearing in nature - Air pressure
IEC 61850-3:2013Communication networks and systems for power utility automation - Part 3: General requirements
IEC 63000:2016Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
IEEE 1613-2009Environmental and testing requirements for communications networking devices installed in electric power substations

IEC 60715:2017Dimensions of low-voltage switchgear and controlgear - Standardized mounting on rails for mechanical support of switchgear, controlgear and accessories

IEC 61850-5:2013Communication networks and systems for power utility automation - Part 5: Communication requirements for functions and device models


General Standards & Protocols

  • IEEE 802.1Q VLANs
  • IEEE 802.3 Type 10BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEC 62439-3:2016 Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR)
  • RFC 768 User Datagram Protocol (UDP)
  • RFC 791 Internet Protocol, Version 4 (IPv4)
  • RFC 792 Internet Control Message Protocol (ICMPv4)
  • RFC 793 Transmission Control Protocol (TCP)
  • RFC 826 Address Resolution Protocol (ARP)
  • RFC 1035 Domain Names (client)
  • RFC 1918 Address Allocation for Private Internet
  • RFC 4443 Internet Control Message Protocol (ICMPv6)
  • RFC 2131 Dynamic Host Configuration Protocol (DHCPv4)
  • RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6)
  • RFC 3596 DNS Extensions to Support IP Version 6
  • RFC 8200 Internet Protocol, Version 6 (IPv6)
  • RFC 8415 Dynamic Host Configuration Protocol for IPv6 (DHCPv6)


Device & Network Management

  • RFC 1098 A Simple Network Management Protocol (SNMP)
  • RFC 1155 Structure and Identification of Management Information for TCP/IP-based Internets
  • RFC 1213 Management Information Base for Network Management of TCP/IP-based internets: MIB-II
  • RFC 2578 Structure of Management Information Version 2 (SMIv2)
  • RFC 2579 Textual Conventions for SMIv2
  • RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks
  • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
  • RFC 3413 Simple Network Management Protocol (SNMP) Applications
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
  • RFC 4250/4251/5252/4253/4254 The Secure Shell (SSH) Protocol
  • RFC 5321 Simple Mail Transfer Protocol
  • RFC 5424 The Syslog Protocol
  • RFC 7540 Hypertext Transfer Protocol Version 2 (HTTP/2)
  • hopf  Private Enterprise MIB


Security / Authentication

  • IEC 62351-8:2020 Power systems management and associated information exchange - Data and communications security - Role-based access control
  • IEC 62443-4-2:2019 Security for industrial automation and control systems - Technical security requirements for IACS components
  • IEEE 1686-2013 Standard for Intelligent Electronic Devices Cyber Security Capabilities
  • IEEE 802.1AE Media Access Control (MAC) Security (MACsec)
  • RFC 4510/4511/4512/4513/4514/4515/4516/ 4517/4518/4519/4520 Lightweight Directory Access Protocol (LDAP)
  • RFC 2865 Remote Authentication Dial In User Service (RADIUS)
  • RFC 2866 RADIUS Accounting
  • RFC 7384 Security Requirements of Time Protocols in Packet Switched Networks
  • RFC 8915 Network Time Security for the Network Time Protoco


Time Synchronization

  • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
  • RFC 5906 Network Time Protocol Version 4: Autokey Specification
  • RFC 5907 Definitions of Managed Objects for Network Time Protocol Version 4 (NTPv4)
  • IEEE 1588-2019 Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems (PTP v2.1)
  • IEEE C37.238-2017 Standard Profile for Use of IEEE 1588 Precision Time Protocol in Power System Applications
  • IEC 61850-9-3:2016 Communication networks and systems for power utility automation - Precision time protocol profile for power utility automation
  • IEEE 60255-118-1:2018-12 Measuring relays and protection equipment - Synchrophasor for power systems – Measurements
  • ITU-T G.8275.1 Precision Time Protocol telecom profile for phase/time synchronization
  • SIMATIC NET SINEC H1 Time Datagram

FG1000G01Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1000G02Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (25,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1000G03Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1001G01Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1001G02Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (25,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1001G03Time Domain Controller Module for product series 1000
  • Standard precision single-band L1 GNSS receiver for concurrent evaluation of GPS, GLONASS, BeiDou and Galileo with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1000G11Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1000G12Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (25,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1000G13Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1001G11Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • TCXO oscillator (236,71 μs per day at constant temperature after 2 days of continuous operation)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1001G12Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO oscillator for enhanced freewheeling stability (25,9 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1001G13Time Domain Controller Module for product series 1000
  • High precision dual-band L1/L5/E5a GNSS receiver for GPS, GLONASS, BeiDou, Galileo and IRNSS/NavIC with connection via SMA connector (female)
  • OCXO HPFS oscillator for high precision freewheeling stability (4,32 μs per day after 7 days of continuous operation (±1ºC)
  • Dry contact for alarm / status output
  • Time server and integrated management controller with 2x ethernet interface 10/100/1000Base-T (RJ45) according to IEEE 802.3 for:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs


FG1020N00Time Service Provider Module for product series 1000
  • Time server with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch)
  • Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1021N00Time Service Provider Module for product series 1000
  • Time server with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch)
  • Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs
FG1020N01Time Service Provider Module for product series 1000
  • Time server with 2x ethernet interface via 2x SFP transceiver module with LC fiber optic connector according to IEEE 802.3 for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch)
  • Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1021N01Time Service Provider Module for product series 1000
  • Time server with 2x ethernet interface via 2x SFP transceiver module with LC fiber optic connector according to IEEE 802.3 for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch)
  • Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs


FG1000M00Standalone independent Management Controller Module for product series 1000
  • Dry contact for alarm / status output
  • Management controller with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
  • Time server for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch)
  • Power supply for wide range AC/DC input voltages 90 – 264VAC (50Hz / 60Hz) / 125 – 250VDC with single power input
FG1001M00Standalone independent Management Controller Module for product series 1000
  • Dry contact for alarm / status output
  • Management controller with 2x ethernet interface 10/100/1000Base-T via 2x RJ45 connector (copper) according to IEEE 802.3 for output of:
    • HTTP/HTTPS, SNMP, SNMP Traps, SMTP, Syslog and huma® software (hopf unified management application)
  • Time server for output of:
    • Network Time Protocol NTP/SNTP v4.2.x (RFC 5905)
  • hopf product series 1000 interconnection cable KA1000B01, 20cm (7.87 inch) Power supply for wide range DC input voltage 14 – 160VDC with redundant power inputs

LI1000A01Activation key for activation of the following feature for product series 1000:
  • Support for Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR) according to IEC 62439-3:2016 for use as Dual Attached Node (DAN)
  • Activation key for one (1) module
LI1000A02Activation key for activation of the following feature for product series 1000:
  • Support for Precision Time Protocol (PTP) according to IEEE Std 1588™-2019 with support for IEEE Standard Profile for use of IEEE 1588™ Precision Time Protocol in Power System Applications (Power Profile v1) according to IEEE Std C37.238™-2011, Profile for Power Utility Automation according to IEC 61850-9-3:2016, IEEE Standard Profile for use of IEEE 1588™ Precision Time Protocol in Power System Applications (Power Profile v2) according to IEEE Std C37.238™-2017 and Telecom Profile for phase/time synchronization according to ITU-T G.8275.1 (from hardware Rev B)
  • Activation key for one (1) module
LI1000A03Activation key for activation of the following feature for product series 1000:
  • Support for SIMATIC NET SINEC H1 Time Datagram Protocol
  • Activation key for one (1) module
LI1000A04Activation key for activation of the following feature for product series 1000:
  • Support for Precision Time Protocol (PTP) according to IEEE Std 1588™-2019 as time source for time domain controller modules
  • Activation key for one (1) module
LI1000A05Activation key for activation of the following feature for product series 1000:
  • Support for Network Time Protocol (NTP/SNTP) according to RFC 5905 as time source for time domain controller modules
  • Activation key for one (1) module


FG9000F00hopf SFP transceiver module, 1000BASE-SX
  • Multi-mode fiber (MMF), wavelength 850nm
  • cable distance: 550m@50/125µm OM2 MMF 275m@62.5/125µm OM1 MMF
  • data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F01hopf SFP transceiver module, 1000BASE-LX/LH
  • Single-mode fiber (SMF), wavelength 1310nm
  • cable distance: 10km@OS1 SMF 20km@OS2 SMF
  • data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F02hopf SFP transceiver module, 100BASE-FX
  • Multi-mode fiber (MMF), wavelength 1310nm
  • cable distance: 2km@50/125µm OM2 MMF 1km@62.5/125µm OM1 MMF
  • data rate: 100Mbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
FG9000F03hopf SFP transceiver module, 1000BASE-EX
  • Single-mode fiber (SMF), wavelength 1310nm
  • cable distance: 40km@OS2 SMF
  • data rate: 1.25Gbps
  • Connector: LC Duplex
  • Temperature range: -40°C to +85°C (-40°F to +185°F)
KA1000B01hopf product series 1000 interconnection cable, 20cm (7.87 inch)



  • 1000-ProductSeries ProductSheet v0100 EN 1 MB Download

  • FG1000G01, FG1000G02, FG1000G03, FG1000G11, FG1000G12, FG1000G13 3D-Model v0100 44 MB Download
  • FG1000M00 3D-Model v0100 39 MB Download
  • FG1001G01, FG1001G02, FG1001G03, FG1001G11, FG1001G12, FG1001G13 3D-Model v0100 45 MB Download
  • FG1001M00 3D-Model v0100 39 MB Download
  • FG1020N00 3D-Model v0100 43 MB Download
  • FG1020N01 3D-Model v0100 43 MB Download
  • FG1021N00 3D-Model v0100 45 MB Download
  • FG1021N01 3D-Model v0100 45 MB Download
